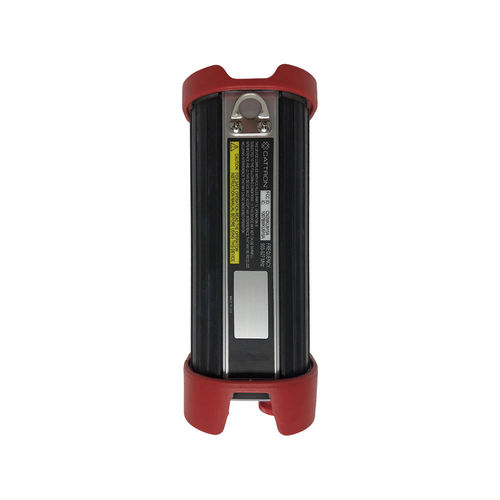

The CattronControl™ MKU is a rugged, pushbutton operator control unit used in radio remote control systems. It has an aluminum housing with rubber bumpers for use in heavy-duty environments. The MKU can be customized for crane remote control and the wireless remote control of equipment and machinery used in manufacturing, transportation and warehousing.

-Rugged aluminum and rubber-buffered housing
-Private label option
-Positive, two-step pushbuttons

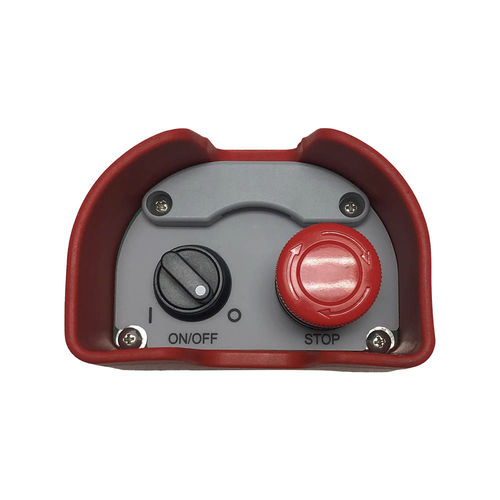

-Available with or without a selector switch
-System configuration via a secure, wireless RFID Transkey
-Works with CattronControl™ CT24, CCM12 and MMCU4 machine control units

IP65 rugged aluminum and rubber buffered housing

Frequency approvals available for worldwide deployment

Up to five dual-step drives, horn, stop cmmands

Redundant hardware and safety critical software

EN 13849-1 Category 3 PL d, EN 60204-1, EN 60204-32, CE Compliant, RED compliant

Rechargeable battery, NiMH 3.6 V/1500 mAH

Standard one-year product warranty

Manufactured in an ISO 9001:2015 certified operation

Parameter Name	Parameter Value
Type	wireless
Control interface	with buttons
Number of buttons	12-button
Protection level	IP65 rugged
Product applications	industrial for crane for overhead cranes for lifting equipment for hoists handling
Battery type	rechargeable
Other characteristics	safety custom
Length (mm)	203 - 203
Width (mm)	76 - 76
Temperature	Max.: 55 °C (131 °F)Min.: -20 °C (-4 °F)
Frequency (Hz)	335000000 - 927000000
