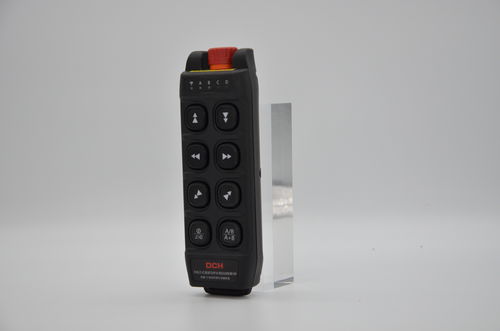

Transmitter-handheld H series
Typical applications:
Overhead Cranes
Chain Hoist
Mobile Hydraulic
Grinder / Shredders
Winches
Conveyor Systems
Hook loaders
Concrete mixers
Tow trucks
Standard Features:
Lightweight & Sturdy
Competitively Priced
Easily Operate
Intelligence DCH iKey
Single or Dual Speed
Technical specifications:
Dimensions：
120*60*35mm(4 buttons) or 180*60*35mm(8 buttons) or 240*60*35mm (12buttons)
Weight： 250-380g(H series)
Current consumption: operating on average 3.75ma
Continue working time: 400h or 50days
Start：press start button for 2s
Antenna：internal
Emergency stop：Conforms to EN13849-1 standard
Enclosure material ：PA6+30%GF
Protection degree： IP65(Enclosure type 4)
Power supply: 2 pieces AA battery
Buttons life: 5 million times
Approximately operating range: 100m(328ft)
Temperature range： -25℃~+70℃ (-13F to +158F)
Humidity range: 0 - 97% maximum non-condensing
Center frequency range: 433-434mhz;
Response time:Less than 100ms
Safety: Active and passive Stop function,Parity & Checksum
Button text:options of arrow,English text, symbol or customized
Power (RF Output): 10mW(e.r.p),
Baud rate: 19200Kbps
Push button Configuration:
DCH-H2100 6 SIMPLE SPEED BUTTON ,Toggle function options
DCH-H2200 6 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options
DCH-H3100 8 SIMPLE SPEED BUTTON ,Toggle function options
DCH-H3200 8 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options
DCH-H4100 10 SIMPLE SPEED BUTTON ,Toggle function options
DCH-H4200 10 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options
DCH-H5100 12 SIMPLE SPEED BUTTON ,Toggle function options
DCH-H5200 12 DOUBLE SPEED BUTTON ,Toggle or a/b/a+b functions options
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
wireless
|
| Control interface |
with buttons
|
| Number of buttons |
8-button
|
| Features |
with emergency stop
|
| Protection level |
IP65
|
| Product applications |
|
| Reach (mm) |
1000 - 150000
|
| Length (mm) |
170 - 170
|
| Width (mm) |
58 - 58
|
| Temperature |
Max.: 70 °C (158 °F)Min.: -25 °C (-13 °F)
|
| Frequency (Hz) |
433000000 - 434000000
|
| Continuous working time |
200 h
|
