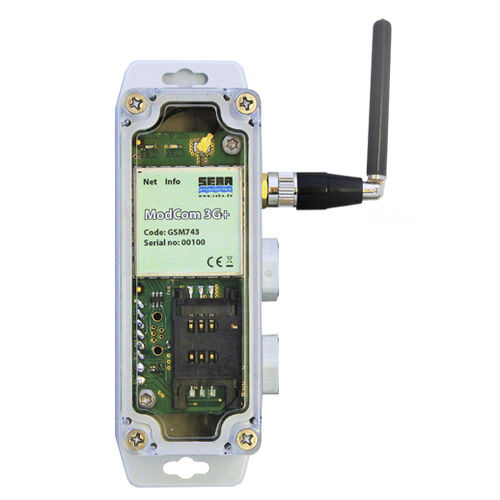

External mobile modem with radio standard for connection to SEBA measurement data collectors type Unilog and Unilog-Light
Compact and robust design, designed for use in all climate zones
SMA interface for the connection of different antenna types
Transmission options: GPRS retrieval, FTP push, TCP push, SMS push, SMS alert



Robust, suitable for field use, compact:
The ModCom modem was specially developed for rough field use and reliably transmits measurement data even at extreme temperature amplitudes. Due to its compact design, the ModCom modem requires very little space in the protective housing or on a mounting plate.

Optimized:
For all SEBA data collectors that do not have an internal mobile radio modem as standard (e.g. Unilog, Unilog-Light), the ModCom modem can simply be connected to the existing RS232 interface on the logger. Different antenna types can be used depending on the signal strength and installation situation on site.

Last, but not least:
The ModCom modem can also be connected to a data reception centre (Windows PC) using a USB interface cable. The ModCom serves as a receiving modem for data packets sent via SMS push. With the help of DEMASole and DEMASdb software, the data packets can be automatically received and processed.



Measuring points that require a high level of data up-to-dateness or are of great public interest (A-level, construction site monitoring, discharge monitoring, weather stations)
Cost optimization through reduction of visits to measuring points

Antennas:
Mini-antenna

Mini-antenna, bendable

Puck-antenna incl. 0,5m cable

5db angle-rod antenna incl. 5m cable

Parameter Name	Parameter Value
Type	wireless
Network	RS232 GSM GPRS USB
Application	for level measurement
Mounting	mobile
