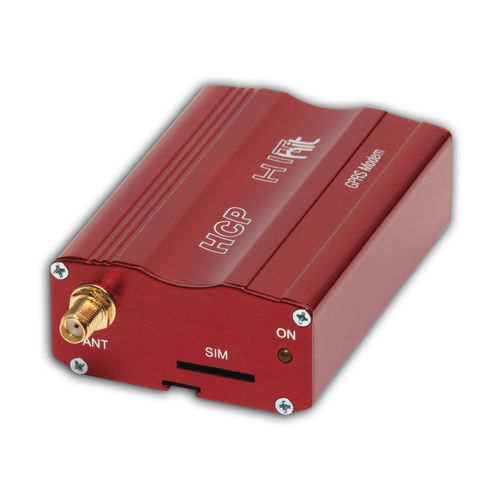

This is easy-to-use quad band GSM/GPRS modem that enables data, fax and SMS applications.
It supports GPRS class 10 standard.

Standard interfaces as well as an integrated SIM card reader shorten installation time significantly.
The functionality of the modem corresponds to the features of the CINTERION MC55i wireless module, supplemented by SIM card reader and RS232 or USB interface.

GSM/GPRS characteristics:
Frequency bands: Quad Band GSM 850/900/1800 MHz
Mobile station Class: B

Interfaces:
Status indication: LED
Antenna: SMA(female)
SIM card holder: YES
Power supply connector for RS232 ver: YES - RJ11
Power supply connector for USB ver: No

General Features:
dimensions: 78x54x26(mm)
Weight: ͠͠ 170gr
Working temperature: -20°C do +55°C
Automatic switch off: under -25°C and over +75°C
Java programmable: NO
Watchdog: Yes
Supported SIM: 3V; 1.8V

Parameter Name	Parameter Value
Type	data wireless
Network	RS232 GSM GPRS fax USB
Application	industrial
Mounting	mobile integrated
