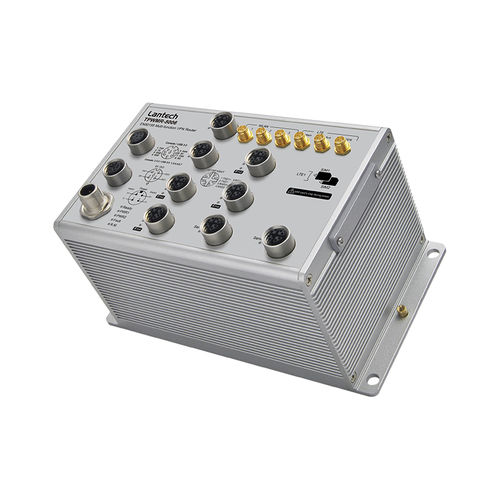

EN50155 Multifunction VPN Router w/1x WiFi 11ac + 1 LTE 4G + 2 serial ports + 6 Gigabit X-coded Ethernet switch (incl. 4 PoE ports) w/ Load Balancing, VPN, Protocol Gateway, Storage**; WV input

Built-in 6 Gigabit X-coded Ethernet managed switch w/4 PoE at/af Switch at 60W budget
Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model)
WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz
Support WIFI 802.11e traffic prioritization and WMM
MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI + 3 LTE
Support Client-base roaming
Supports AP/ Bridge/ Client/ MESH modes
Support 802.11s Wireless Mesh Network
Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES)
VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE
Load Balancing built-in 5 mechanisms
Optional EMMC Flash storage on-board**
Optional eSIM chip enables router with versatile data plans**
Support NAT and Firewall
Support Modbus gateway on serial ports
Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports
Optional 2 GT smart bypass protection
Galvanic isolation on WV model from 16.8V~137.5V input
Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; Wi-Fi & LTE graphic signal strength
Editable login page of captive portal for hot-spot application
USB port to backup, restore the configuration file and upgrade firmware; Dual image firmware

Parameter Name	Parameter Value
Type	wireless managed
Network	Ethernet 4G LTE RS232 WiFi RS485 gigabit Ethernet PoE radio MIMO USB
Mounting	built-in bridge
Number of ports	10 ports
Other characteristics	VPN
Applications	industrial
