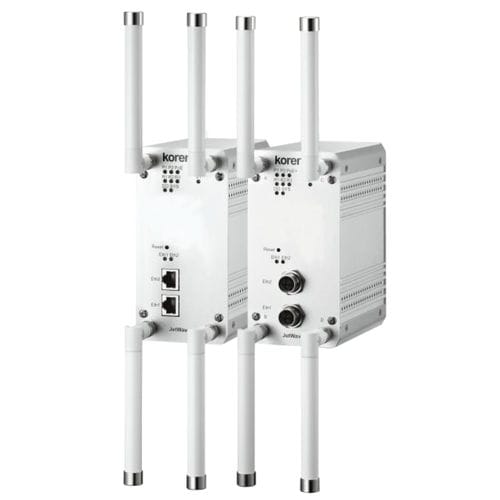

Industrial Dual 802.11ac 2.4G/5G 2T2R MIMO AP

-Dual Radio Configurable: 802.11 a/b/g/n/ac and 2.4G/5G Band
-802.11ac 2T2R MIMO doubles up to 866Mbps per radio
-Rugged M12 anti-vibration connector for vehicle installation (3220-M12 V3)
-Support IPsecOpenVPN
-LAN/Wireless Link Fault Pass-Through
-Dual Radio Bridge and Redundancy
-LAN/WAN/WIFI Bridge and Routing

Interface
Ethernet - 2x GE RJ-45 (or M12)
WIFI - 2x 2.4G/5G 802.11n/ac
WIFI antenna socket - 4 (Dual 2T2R MIMO)
DI/DO (dry relay) - 1/1
DC power input - 802.3at PoE (Eth 1) Dual DC 24V(12~48V)
PoE mode - PoE PD

SW/Protocol
Wireless mode - AP, Client, WDS-AP/Client,
Routing - LAN/WIFI to WAN
NAT/Firewall - Yes
VPN - OpenVPN/Ipsec
Link fault pass-through - Yes
Fast roaming - Yes
802.1x, MAC access control - Yes
Configuration - CLI, Web, Utility, SNMP
Link test tools - Yes
Event alarm - DO, E-mail, Syslog, SNMP Trap

Mechanical
Housing/protection (IP) - Aluminum (IP31)
Dimension (HxWxD mm) - 149 x 120.6 x 74
Operating temperature - -40~70℃

Certification
Regulatory/approval - CE/FCC
Compliance standard - EN50121-4, EN50155

Parameter Name	Parameter Value
Type	cellular wireless
Network	IP Ethernet LAN WAN WiFi gigabit Ethernet PoE 2.4/5 GHz MIMO radio RJ45 5G
Mounting	bridge
Number of ports	2 port
Other characteristics	firewall VPN rugged
Applications	industrial
