Long-Range Wireless Ethernet for High-Speed and Reliable Connectivity

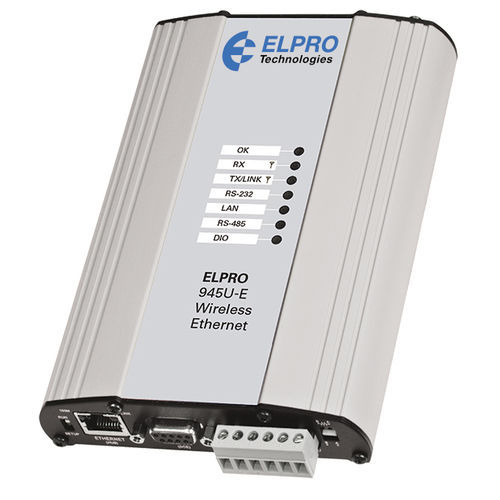

The ELPRO 945U-E Wireless Ethernet Modem is a robust, license-free wireless transceiver capable of long range and high bandwidth communications. Operating at 900MHz and up to 630mW, the 802.11 standards-based ELPRO 945U-E is optimized for throughputs of up to 54Mbps which provides robust and secure two-way wireless communications in challenging outdoor environments typical of industrial monitoring and control applications.

Capable of operating in Access Point/Client configuration, functioning as a network Bridge/Router, or serving as a Serial Server (RS232/485), the ELPRO 945U-E offers node to node deterministic mesh network repeatability for further range and multiple channel spacing options to increase network scalability. Integrated Modbus server capability allows seamless I/O expansion through the use of ELPRO 115S Expansion modules.

Applications: IP/ PTZ cameras, Roaming vehicle monitoring/diagnostics, PLC Communications, Data logger communications, Mass notification systems, Agriculture sprayer control, Water/ waste water systems, SCADA networks

Features:

-902 – 928MHz Frequency and 250 – 630mW RF Power
-802.11 DSSS to 54Mbps Data Throughput
-1.25/2.5/5/10/20MHz Channel Spacing Options
-Transmit and Receive Antenna Diversity
-Access Point/Client and Bridge/Router Configuration
-Serial Client/Server/Multicast Modbus TCP to RTU Gateway
-10/100baseT IEEE 802.3 Ethernet
-Spanning Tree (Self Healing) Support
-Deterministic AP to AP Mesh Network Repeatability
-AP to AP Fast Roaming for movable Machinery
-IEEE 802.11i Secure 128bit AES Encryption (WPA2)

Parameter Name	Parameter Value
Type	wireless access point
Network	RS232 RS485 Ethernet network wireless RF Modbus RTU Modbus TCP
Application	industrial
Mounting	integrated outdoor bridge
Other characteristics	long-range
