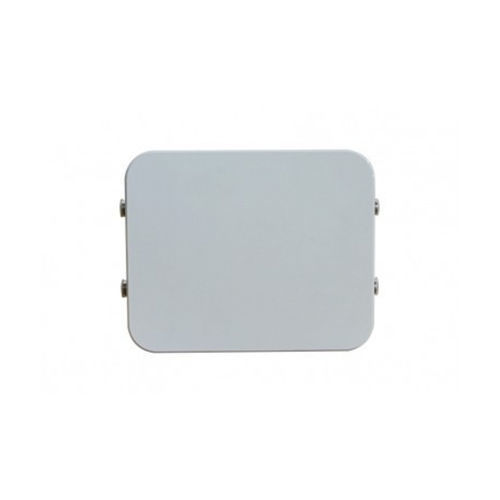

IWAP3214G is a high-performance, high-speed industrial 11ac 1200Mbps dual-band base station. Using professional industrial-grade Qualcomm chips, providing 2.4GHz and dual 5.8GHz wireless services, with 1 Gigabit WAN/LAN port, 1 optical port, the highest wireless rate can reach 1200Mbps, the wireless environment is cleaner, and wireless access is more stable. There are more wireless access users and faster wireless speeds, providing a good solution for wind power, high-speed service areas, smart cities and other environments.2.4G and 5Gwifi are equipped with two independent signal amplifiers (PAs) and lna, and an external 5dbi omnidirectional suction cup antenna. Wireless coverage is longer andstronger, supporting intelligent channel analysis and automatic selection of the best channel, reduce interference and delay, and provide a stable wireless network signal.IWAP3214G supports Wave2's MU-MIMO (Multi-User Multiple Input Multiple Output) technology, supports 8 spatial streams, 160MHz channel bandwidth and 256QAM modulation technology, greatly improving the transmission rate.

Features and Benefits

-Qualcomm enterprise-level main control chip, industrial-level circuit design, support IEEE802.11a/b/g/n/ac protocol, and provide 1200Mbps wireless access speed

-Combined with MIMO technology, the circuit design of high power and high receiving sensitivity is adopted

-The device supports 4 groups of SSID issuance, SSID is hidden, and the gateway mode supports flow control function

-The equipment supports 2 ways of omnidirectional antenna and directional antenna (choose 1 from 2), and the deployment is flexible

Parameter Name	Parameter Value
Network	wireless MIMO network LAN dual-band WAN
Other characteristics	high-performance industrial automatic
