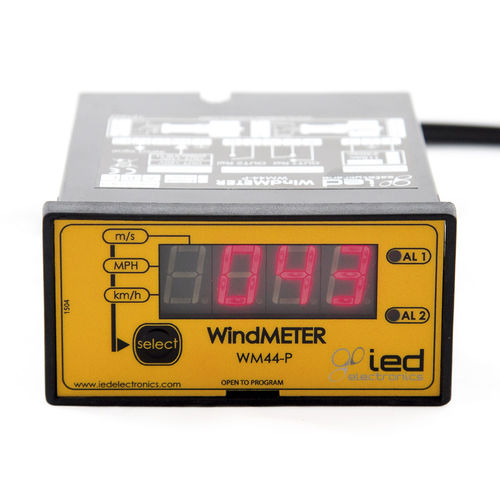

Anemometer display with alarms.

WM44-P V3 RF has a 3-digit wind speed reading in km/h, mph or m/s. It is configured to work with ANEMO4403 V3 RF + RF MODULE V3. More than one display can work with a Radio-Frenquency set. Several devices can communicate each other in the same area with no risk of interaction or interference.

FEATURES
Alarms
The alarm is triggered when the wind speed value reaches or exceeds the programmed value. It includes a configurable delay to prevent the alarm from being triggered by gusts of winds.

The alarm is deactivated when the wind speed drops below the set value. It also has a configurable delay to prevent the alarm from being deactivated by temporary periods of low-intensity wind.

The activation of ALARM2 deactivates ALARM1. When ALARM2 is activated, the reading will blink to warn about the danger.

Alarms configuration: Activation values, polarity, intermittent or continuous alarm, alarm latching (only ALARM2)

Alarms outputs: Relays. Contacts “NO” and “NC” (ALARM1), contact “NO” (ALARM2). Dry relay contacts.

Wind speed sensors & Communication
For exclusive use with the Anemo 4403 RF / BAT wireless sensor. Twin units share the same DL and MY parameters but exchanged. DL and MY parameters are written in the unit label. The sensor and the WM44-P V3 RF communicate each other through RF 802.15.4 2.4 GHz, that is a worldwide free frequency band.

Default user setting
The setting can be saved as “Default user setting” and can be retrieved when necessary P00 – (3). If no configuration has been saved, the factory configuration can be reset with this process.

Parameter Name	Parameter Value
Measured value	wind speed
Display	digital
Type	panel-mount
Other characteristics	with alarm wireless
