Complex Gas (Ammonia, Hydrogen Sulfide) Cloud Data Logger RN400-T2GS

WiFi-ENT support, emergency call notification, smartphone remote monitoring
Fully wireless, waterproof, built-in buzzer, data backup, battery power, UPS support


CH1: gas (RG10)
CH2: gas (RG10)

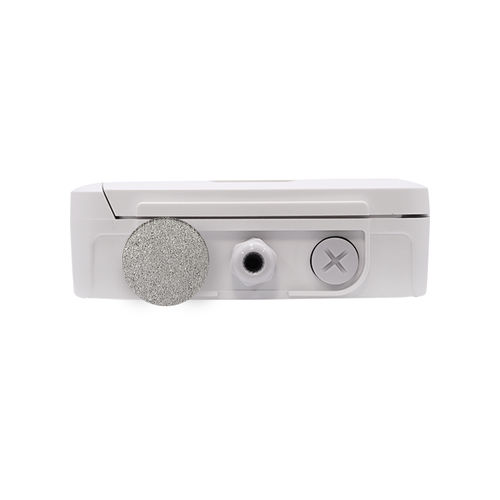

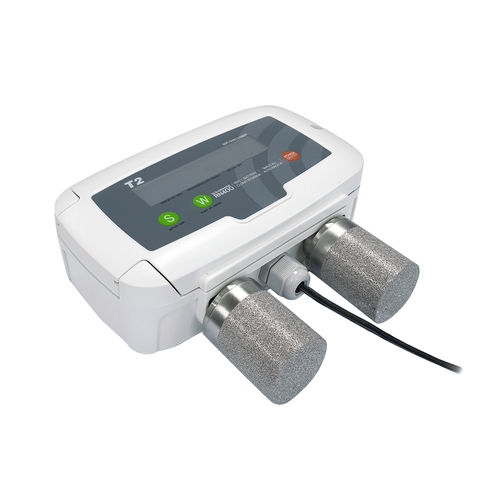

External gas sensor for easy periodic replacement
Radionode's own gas sensor, RG10, is supported. Ammonia (RG10-NH3) and hydrogen sulfide (RG10-H2S) sensors with a sintered filter for sensor protection measure more precisely. Two gases can be measured simultaneously.

Equipped with high-performance memory F-RAM
All data measured by the RN400 is stored in F-RAM. F-RAM is a non-volatile memory whose contents are not erased even without power. It is 100 times faster than general flash memory and has very high write endurance. Measured data is stored in F-RAM, and the data is transmitted to the location desired by the user every transmission cycle. Even when Wi-Fi is disconnected, data is still saved, so monitor with confidence.

strong secure wifi
RN400 was requested by multinational corporations for high-grade Wi-Fi functions from the time of planning. The RN400 is therefore implemented to support enterprise security. This is a function that is not commonly used in home wireless routers, and is often used by businesses that require a high level of security. In order to use Wi-Fi in the Wi-Fi Enterprise security level, you can register not only the Wi-Fi password but also a separate ID/PASSWORD to the computer team and use it after receiving a usable certificate from the computer team.

Parameter Name	Parameter Value
Connector type	WiFi, RS-485
Display	with LED display
Applications	for monitoring for gas
Other characteristics	battery-powered multi-channel with external sensor IP67 with remote control
Memory capacity	2,580 unit
