About

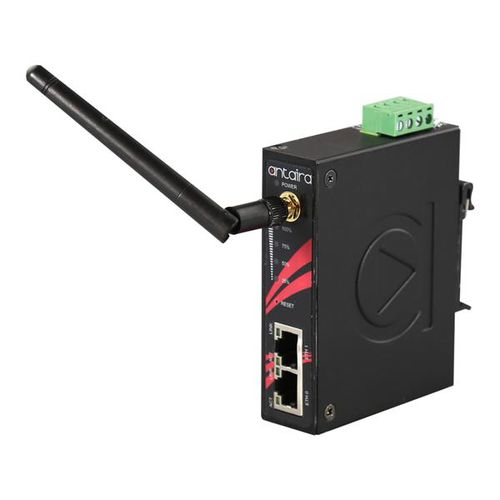

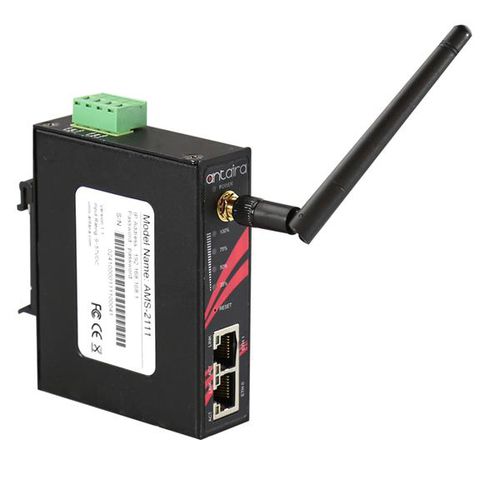

AMS-2111 Series are designed for industrial and enterprise wireless access applications. Embedded with the Qualcomm/Atheros AR9331 chipset, it boasts network robustness, stability and wider network coverage with a very low voltage input. Based on IEEE 802.11 b/g/n, the access point supports high-speed data transmission of up to 150MBps.
Features
WLAN Supports up to 150MBps
Industrial 1x1 SISO (Single Input Single Output)
Supports IEEE 802.11 b/g/n
Supports 2*10/100Base-TX WAN/LAN port
Qualcomm/Atheros AR9331 SoC
Tx Power (EIRP) 21 dB for 2.4GHz
WPA, WPA2, TKIP, AES
Power Input: 9~48VDC in 4-pin terminal block
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
5-Year Warranty
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
WiFi
|
| Other characteristics |
|
