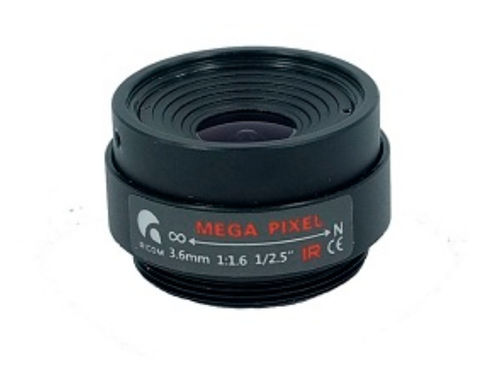

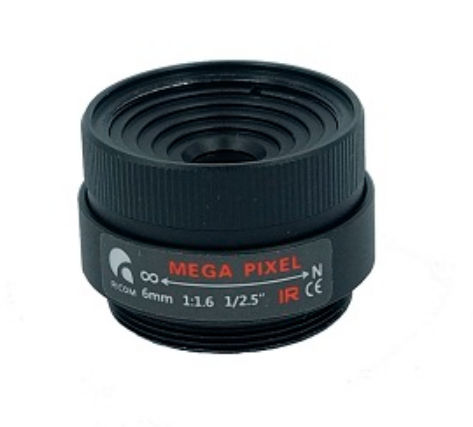

Megapixel lens is essential to achieve high quality and full resolution of high definition cameras. Overall image quality is greatly affected by the quality of the optical lens. This lens provides high contrast, brightness and sharpness across the entire image plane. It is light, compact, CS mount, f1.6 apeture and fixed focal length from 2.8 to 8mm. From wide view angle to narrow view angle, other focal lens with narrower view angle is also available for custom order. The outstanding performance makes the lens fit many different type camera applications.

Hightlights

> 3 Megapixel designed for full HD camera
> CS Mount
> Durable metal barrel and mount
> Available from wide view angle to narrow view angle
> Fiexed focal with apeture f1.6

Specification

Fixed Focal Lens -

Pixels - 3 Mega
Focal Length(mm) - 2.1, 2.8, 3.6, 4, 6, 8
Other focal lens, fisheye lens, non-distortion lens are also optional
View Angle - D170ºxH130ºxV96º
D115ºxH109ºxV90º
D100ºxH76ºxV56º
D90ºxH72ºxV54º
D61ºxH48.8ºxV36.6º
D46.2ºxH37ºxV27.7º
Aperture - f1.6
Mount - CS
Iris - Fixed
Focus - Manual

Physical -
Dimension(mm) - Φ33×17.64, Φ30×17.6, Φ30×20.8, Φ30×19, Φ30×22.5, Φ30×19.6
Weight(g) - 28, 28, 26, 32, 30, 27

Parameter Name	Parameter Value
Type	wide-angle
Technical applications	compact
Other characteristics	megapixel resolution high-resolution low-distortion high contrast
Focal length	Max.: 8 mm(0.31 in)Min.: 2.1 mm(0.08 in)
