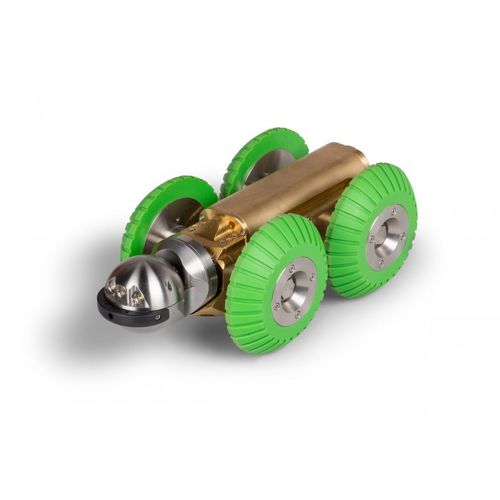

Welcome to the future with the new steerable, lightweight, zero-emission, portable, battery-powered Troglotrek Sewer Crawler. This European built unit is one of the smallest options on the market able to inspect straight 4” (100mm) pipes, and light enough for a single operator to pick it up, transfer it to a jobsite, run the inspection on the battery with no power cables, generators or inverters, and carry it back. This crawler can be used in pipes up to 12” (300mm) without any attachments, or larger areas with additional LEDs and wheels.

The complete Troglotrek pipe robot is fully waterproof, meaning the camera head, crawler, and cable are IP68, while the monitor, keyboard, and processor on the reel are IP67 for wet outdoor use. This device is extremely unique in that the power source is mounted on the crawler body, allowing a lightweight cable to transmit the video feed and data. There is no need for additional strain relief or thick copper wires that heat up. The 4mm cable is mostly Kevlar, with a Vectran strength line, no high voltages (it is only running 5V), and 3 small conductors, making this efficient, lightweight, extremely safe to use, and portable.

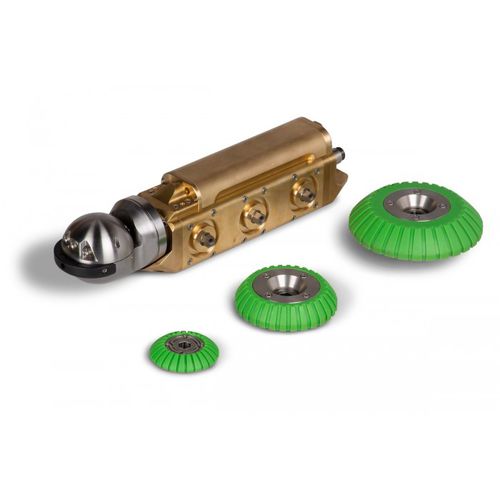

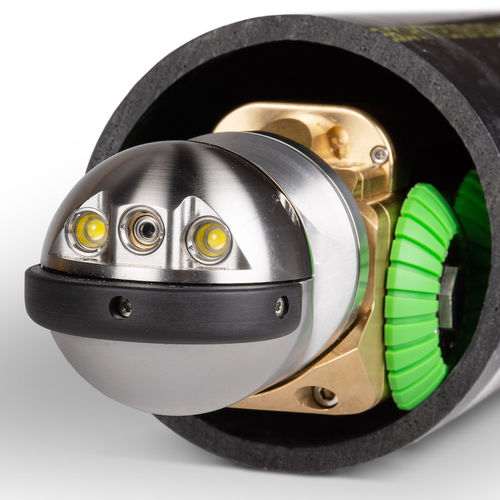

The sewer crawler features brushless motors that provide high torque at low rotation speeds, which means no gearboxes are needed, a back-up camera with built-in LEDs, a robust solid brass design, and interchangeable camera heads; either an economy 1.9” straight view with a focal range from 100mm to infinity, or a 2.36” PTF - pan, tilt and focus camera head that is self-centering with 360-degree tilt, 285-degree usable side to side panning, and a manual focus from 20mm (0.8”) to infinity (as far as you have light)

Parameter Name	Parameter Value
Locomotion	wheeled
Options	waterproof 360° viewing with LED light miniature compact long-range weather-resistant
Associated function	multi-purpose
Applications	for pipes for corrosion control for cylindrical structures
