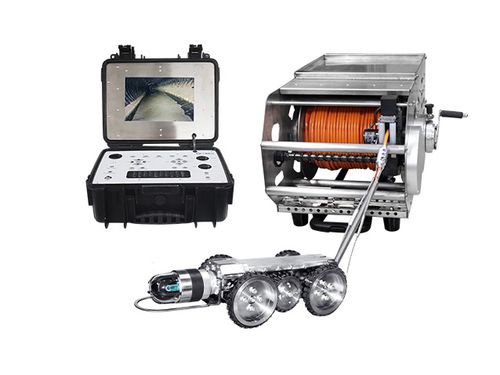

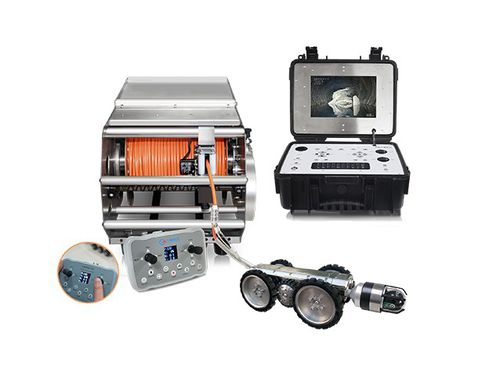

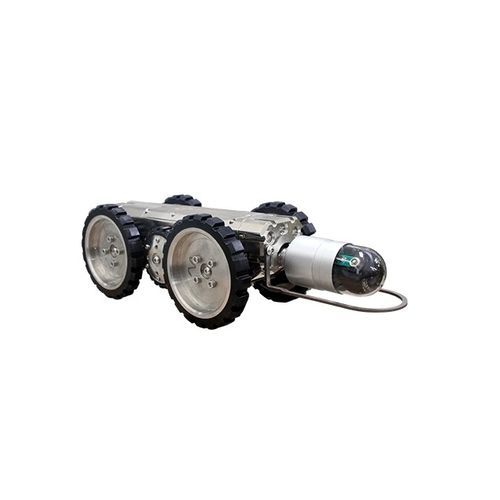

This Drain Camera is suitable for 120-600mm pipe inner inspection . The Crawler camera is used for inspection the cracks, defects, damage ,block and so on. it is widely used in many filed such as petroleum, chemical industry, nuclear power, fire,gas pipe, sewer pipe, oil pipe ,etc. The control box control the crawler and camera, to take Photo and video, then store the video and picture on the card. Defects, blocks can be identified based on the pictures and video.

1. Waterproof ,anti-corrosion,can be used in different place.
2. Forward ,backward,turn freely and adjustable speed.
3. With ambient light and adjustable illumination.
4. Lens 360°rotation and reversal without death angle.
5. Focus length is adjustable ,no limited by space size.
6. Video,photo can be set at will.
7. Video can be storage and replay.
8. The machine is easy to clean, low cost maintenance.

• Screen Size : 10’’ color LCD
• Resolution : 1920*1080P
• Pixel : 2000000
• Camera Diameter : 51mm
• Rotate : 360° infinite rotate,220° constant flip
• Cable Reel : Electrical Barrow, automotical reel

Parameter Name	Parameter Value
Locomotion	wheeled
Options	waterproof corrosion-resistant
Applications	for sewer for pipelines for hazardous environments
