The photovoltaic welding strip is specially developed for the solar modules. Wetown ensures the control of raw materials, with building a complete production chain.

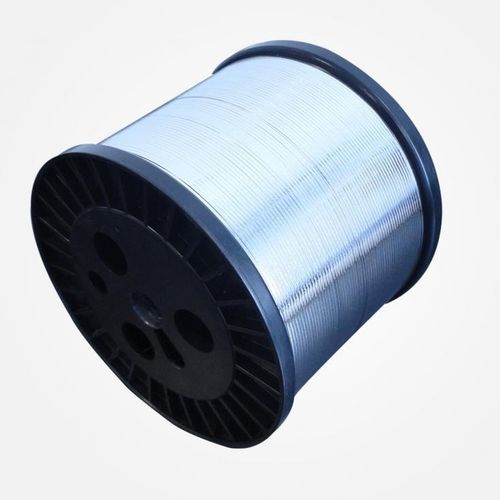

Product Type - Interlinked Ribbon
Standard size - thickness:0.08-0.6mm
width:0.7-8.0mm
Conductor Type - Cu
Surface treatment - Tin plated or customized
Purity - ≥99.98%
Design Standard - GB/T 11091-2005,GB/T 2059-2008,GB/T 351-1995,GB/T 4340.1/2/3-1999,GB/T 228-2002
Yield strength - ＜90 MPa
Product Series - Photovoltaic welding

Mainly soldered to the main grid line of the cell, it is used to connect the solar cell, collect and transmit the Photovoltaic modules current.

1) Can be customized.

2) Stable quality.

3) Standard production chain and automatic line ensure fast delivery.

4) Passed SGS testing certification, fully in line with the European ROHS directive standards.

Parameter Name	Parameter Value
Product applications	welding
