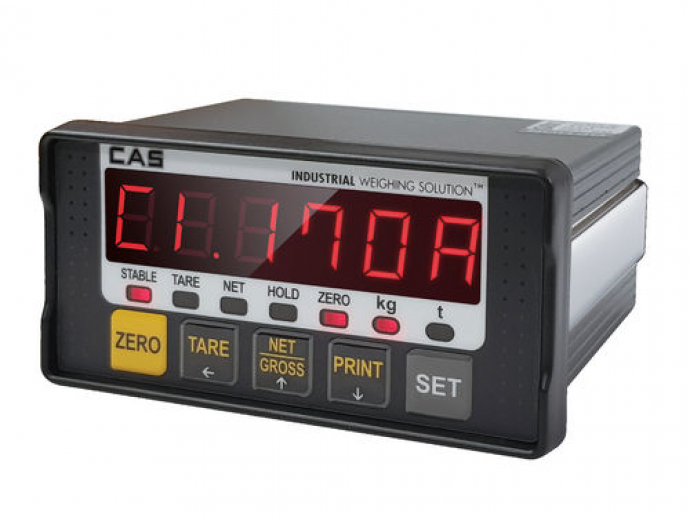

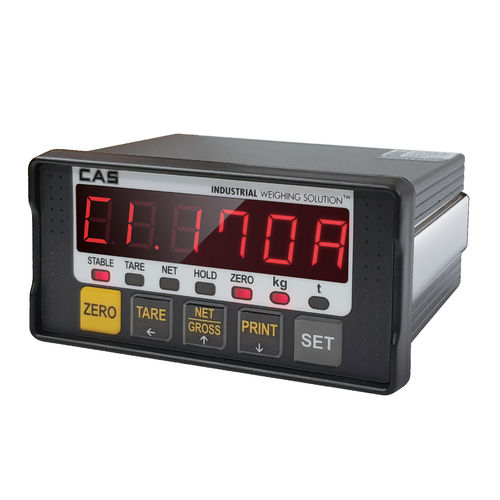

Fast and Accurate Industrial Indicator

CI-170A provides a fast control and an accurate weighing in various industrial environments via up to 320 times/sec of A/D conversion speed and 1/10,000 of high display resolution. Compact body designed according to DIN standard [96(W) x 48(H)mm] offers a space saving structure. User can enhance a space utilization of weighing panels or cabinets. Also, Various Interface are available such as External I/O and Analog Output, RS-232C, RS-485.

Fast Control & Accurate Weighing Performance

Via upto 320times/sec of A/D conversion speed and 1/10,000 of high display resolution, CI-170A provides a fast control and an accurate weighing performance.

Compact DIN Size Body & Clear LED Display

With Compact DIN size body, CI-170A is suitable to be installée! in a small weighing panel, also user can easily checkthe weight value with clear LED display.

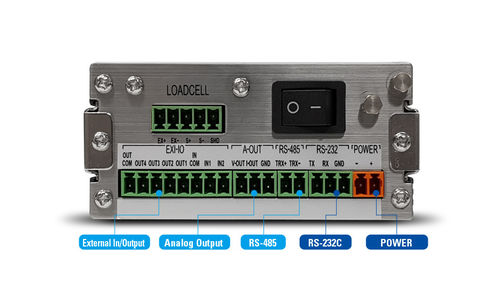

Various Interfaces

Various Interfaces of CI-170A make it easy to be connected with other equipments.
- Standard : RS-232C.
- Option : External 2ln/40utput, RS-485(Supported Modbus RTU Protocol), Analog Output.

OPTION
- RS-485 (Supported Modbus RTU)
- RTC (Real Time Clock)
- Analog Output (0~20mA, 0~24mA, 0~5V, 0~10V, ±5V, ±1OV)
- External 2 lnput/4 Output
- Adaptor (DC 12V, 1.25A)

Parameter Name	Parameter Value
Measured value	weight
Display	with LED display
Type	panel-mount
Other characteristics	compact high-accuracy explosion-proof
