・Full HD to choose according to the application
・Full HD image quality camera module
・Equipped with a wide dynamic range function and MIPI output, enabling shooting in a variety of environments
・Ideal for surveillance cameras and drive recorders

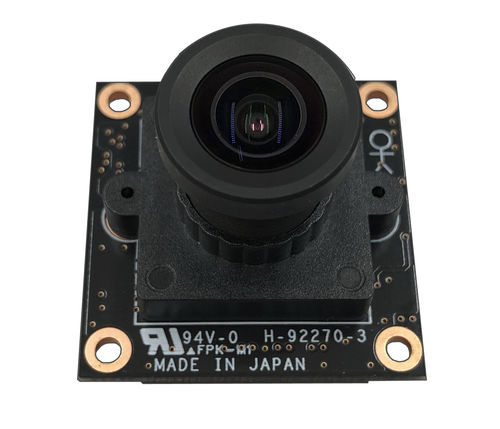

1.Model: WDR MIPI 2M Camera Module, 2.Model number:MultiFlex-CAM-1080H-A & MultiFlex-CAM-1080H, 3.Model number configuration:-A is a lens with an IR cut filter (blank is a lens without an IR cut filter) MultiFlex-CAM-1080H-※※※※(-A)
※※※※ → 4-digit lens model number (for lenses other than the following)
4.Number of pixels:1920 x 1080 (Full HD, approx. 2 million pixels), 5.Optical part /5-①Lens：S-mount (M12, 0.5mm pitch) non-adhesive (replaceable),5-②Aperture/focal length： F2.5±5% 2.5mm, 5-③Angle of view:H: 124.4° / V: 72° / D: 141°,5-④IR cut filter：Yes(CAM-1080H-A) & None(CAM-1080H),6.Image sensor part /Image sensor:ON Semiconductor AR0230, 7.Optical size:1/2.7 inch, 8.Shutter method:rolling shutter
9.Coding:RGB bayer pattern, 10.Frame rate: 30fps,11.Image signal processor / Model number: X-CHIP XC7022, 12.Function: AE/AWB function, Wide Dynamic Range function,
Mirroring function etc. 13.Interface /13-①Format:YUV422, 13-②Output method:MIPI
13-③Compression method:Uncompressed,13-④Output connector:Amphenol ICC SFW15R-1STE1LF (15 pin), 13-⑤

Parameter Name	Parameter Value
Technology	WDR
Function	security
Interface	MIPI
Resolution level	full HD, 1920 x 1080
Resolution	2 Mpx
Other characteristics	board
