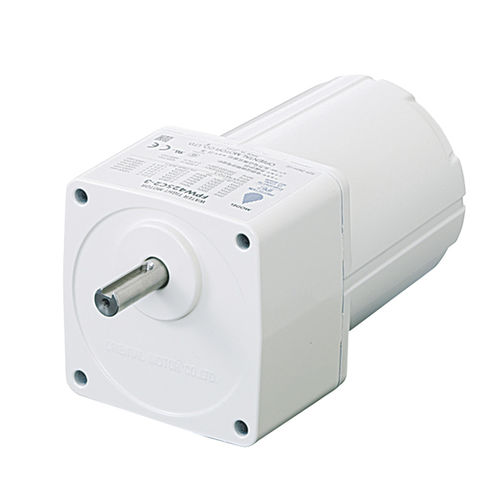

Motors with IP67 (FPW)

FPW series
Waterproof, dust-resistant asynchronous motors with protection class IP67

Features
Waterproof
Dust-resistant
Corrosion-resistant
IP67

Frame size: 80, 90, 104 mm
Output power: 25 to 90 W
Rated speed: 1200 to 1600 rpm
Permissible torque: 0.29 to 30 Nm

Parameter Name	Parameter Value
AC/DC	single-phase
Type	asynchronous
Voltage (V)	220 - 110
Protection class	IP67 waterproof dust-proof for harsh environments
Applications	for industrial applications for the chemical industry for agribusiness heavy-duty
Other characteristics	with gearbox constant speed
Power (W)	25 - 25 40 - 40 60 - 60 90 - 90
Intensity (A)	0.21 - 1.57
Torque (Nm)	0.29 - 30
Rotational speed (rpm)	1200 - 1600
Diameter (mm)	80 - 104
