About

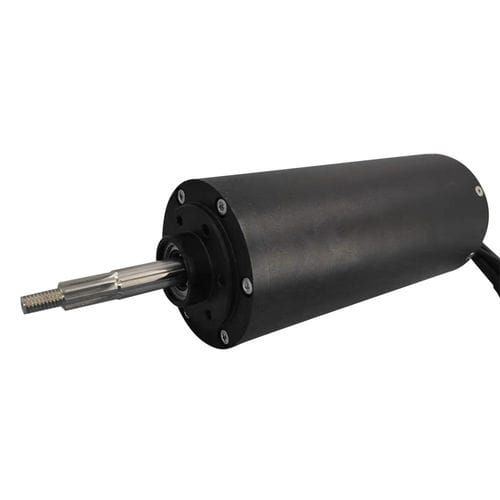

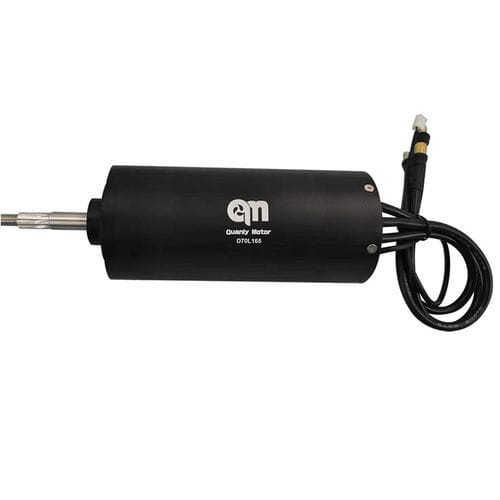

D70L165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for.
Protection Level: IP68 Electric Motor
Diameters at 70mm
Configuration: 12N10P
Speeds up to 13,020 rpm
Maximum output power up to 13KW
Maximum Torque output up to 21N*m
Cooling Solution: Water cooling
Key features:
1. Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation.
2. High performance: Our motors provide extremely high torques with a minimum of power consumption.
3. Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
4. Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
5. Compact: High efficiency and high power density realized in a compact design.
6. Long life: Double seal ball bearings with moisture resistant for long life.
7. Cooling solution: water-cooling & Air-Cooling.
8. Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request.
Can be customized for
Sensor or sensorless
Winding current
Shaft Options
Cable and Connector
Kv Ratings
Mounting Options
Encoder or Non
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
DC
|
| Type |
brushless
|
| Voltage (V) |
160 - 18
|
| Protection class |
|
| Configuration |
|
| Number of poles |
10-pole
|
| Cooling mechanism |
water-cooled
|
| Applications |
|
| Other characteristics |
|
| Power (W) |
0 - 13000
|
| Torque (Nm) |
0 - 21
|
| Rotational speed (rpm) |
0 - 13020
|
| Diameter (mm) |
70 - 70
|
| Operating temperature (°C) |
-20 - 120
|
