For the continuous on-line monitoring of discharge water during de-ballasting operations, VAF Instruments is one of world's main suppliers. The Oilcon® Mark 6 Oil Discharge Monitoring & Control Systems are more reliable and more accurate than any other monitoring & control system. It is suitable for all ballast and slop water discharges and meets the bio fuel requirements MEPC 108(49) and 240(65).

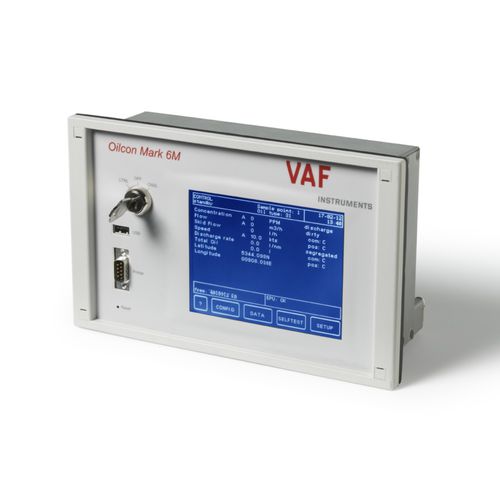

We present: The Oilcon® Mark 6

User benefits

Single data link engine room / control room
Low operation costs
Low cost of installation
No special operator attention required
Minimal fresh water consumption
Light weight
Flexible installation, distance between engine room and pump room located
units may be up to 30 meters

Features

Patented multiple scattering measurement technique
Full compliance with MARPOL requirements
No additional chemical/solvents needed for operation
No hot water flushing required
Automatic self cleansing, zeroing and calibration
Fully automatic flushing eliminates clogging on shutdown
Automatic cell window washing prevents fouling of optical path
Easy installation; only two bulkhead penetrations
Easy operation with best yet help functions
Monitoring of clean, segregated and dirty ballast in a single unit
Adjustable alarm relay contact for rpm level
Annex I and Annex II capabilities in one version

Parameter Name	Parameter Value
Applications	water
Other characteristics	continuous
