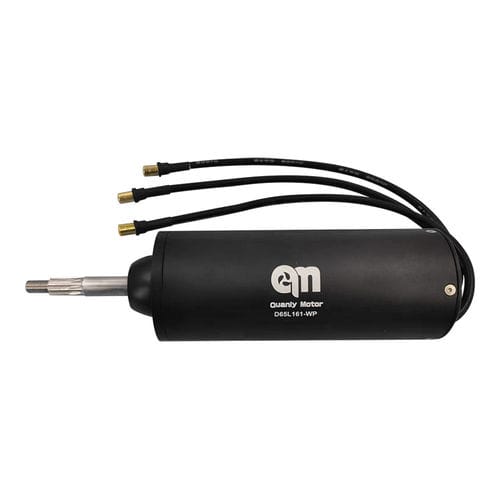

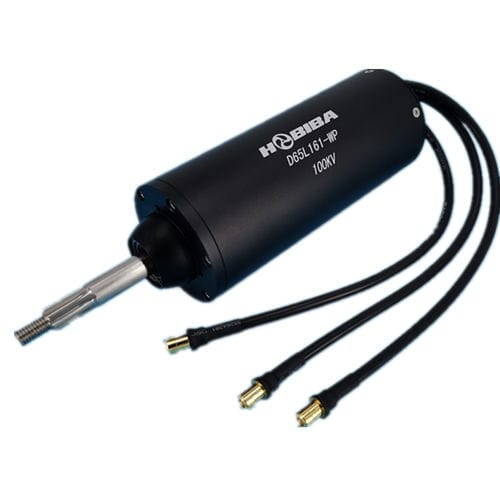

D65L161 Waterproof Brushless Inrunner 10kw
D65L161 BLDC motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for.
Protection Level: IP68 Electric Motor
Diameters at 65mm
Configuration: 18N6P
Speeds up to 12,768 rpm
Maximum output power up to 11KW
Maximum Torque output up to 15.8N*m
Cooling Solution: Water cooling
Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, etc.
Key features:
- Robust & durable: Outer shell in black anodizing aluminum alloy, improve conductive heat transfer, prevent corrosion and oxidation;
- High performance: Our motors provide extremely high torques with a minimum of power consumption.
- Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation.
- Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%.
- Higher on power to weight ratio and torque to weight ratio.
- Compact: High efficiency and high power density realized in a compact design.
- Long life: Double seal ball bearings with moisture resistant for long life
- Cooling solution: water-cooling & Air-Cooling.
Can be customized for
Sensor or sensorless
Winding Current
Shaft Options
Cable and Connector
Kv Ratings
Mounting Options
Encoder or Non
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
BLDC
|
| Voltage (V) |
160 - 16
|
| Protection class |
|
| Configuration |
|
| Number of poles |
6-pole
|
| Cooling mechanism |
water-cooled
|
| Applications |
|
| Other characteristics |
|
| Power (W) |
0 - 11200
|
| Intensity (A) |
50 - 60
|
| Torque (Nm) |
15.2 - 15.8
|
| Rotational speed (rpm) |
0 - 12768
|
| Diameter (mm) |
65 - 65
|
| Operating temperature (°C) |
-40 - 120
|
