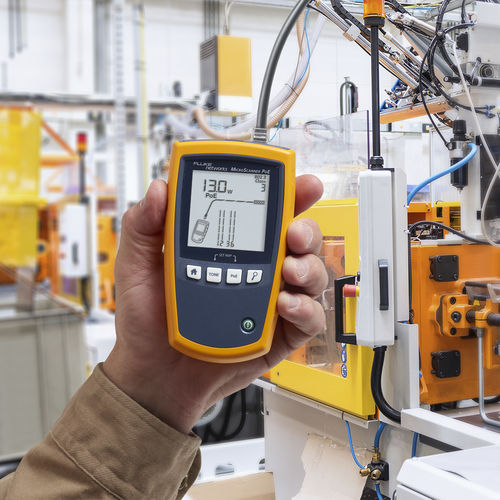

The technician’s tool for installing and troubleshooting Ethernet devices.
MicroScanner PoE Capabilities:
• Quickly determine if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device (PD).
• Ethernet Alliance Certified to IEEE-802.3™ PoE standards for reliable multivendor interoperability
• Information for the Network Engineer to investigate potential switch configuration or malfunctions.
• PoE  Switch Verification – Determine if a switch port can provide enough power by reporting PoE class (0-8).
• Powered Pairs – Graphically identifies powered pairs. Including Dual Signature where the switch port delivers power on 2 or 4 pairs (802.3bt or PoE ++)
• Active Switch Detection - Determine if a cable is connected to a switch port and port speed up to 10G
• Cable Testing – Identify any shorted, open or crossed wires at both ends, length of each pair, and send tones to find cables.
• Validate and troubleshoot your Industrial Ethernet copper cabling
• PoE Injector verification - Display injector voltage level

MicroScanner Series Features:

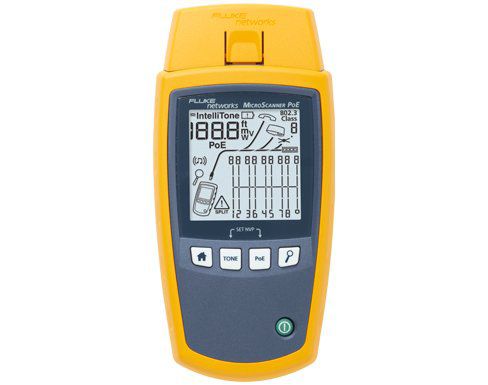

• Straightforward Interface – Graphical wiremap, length, cable ID, and distance to fault displayed on one screen
• Multimedia Support – Tests all common media types including RJ11, RJ45, Coax(MS2 only), with no need for adapters
• IntelliTone Toning – Trace virtually any cable or wire pair with IntelliTone digital and analog toning
• VDV Service Detection – Verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE

Parameter Name	Parameter Value
Test type	voltage, Ethernet network, communication network
Tested product	cable
Applications	industrial for production diagnostic
Configuration	portable
