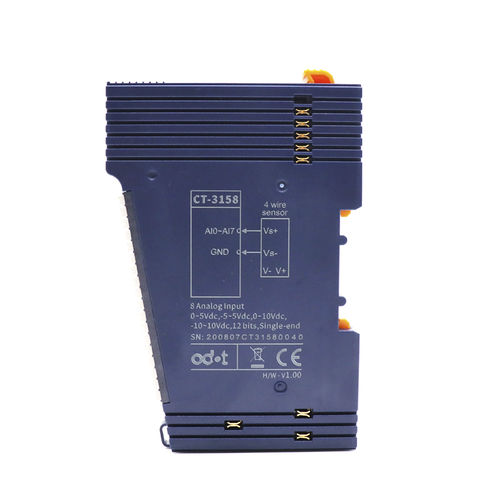

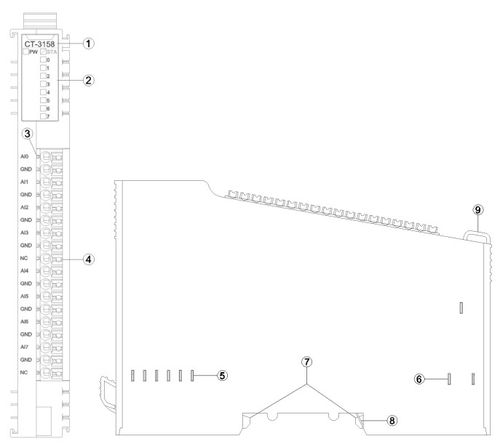

CT-3158: 8 Channel Voltage Input 0~5VDC/0~10VDC/±5VDC/±10VDC, 12Bit

Module features
◆ The module supports 8 channels of voltage signal input
◆ The module could collect 0~5VDC, 0~10VDC, ±5VDC, ±10VDC, with a 12-bit resolution
◆ The module carries with 8 analog input channel LED indicator
◆ The module input signal is a single ended common grounding input

Technical Parameters

General parameters
Power: Max.90mA@5.0Vdc
Isolation: I/O to internal bus: opto-couple isolation (3KVrms)
Field Power: Not used
Wiring: I/O wiring：Max.1.5mm2(AWG 16)
Mounting Type: 35mmDIN-Rail
Size: 115*14*75mm
Weight: 65g

Environment Specification
Operational Temperature: -40~85℃
Operational Humidity: 5%~95% RH(No Condensation)
Protection Class: IP20

Input Parameter
Channel Number: 8 channel voltage input
LED Indicator: 8 channel input indicators
Input Voltage Range: 0~5VDC、0~10VDC、±5VDC、±10VDC
Resolution: 12Bit

Accuracy
±0.3%@25℃
±0.5@-40~85℃

Output Impedance: 1MΩ
Common Terminal: Common Grounding Input

Parameter Name	Parameter Value
Signal type	analog
Type	remote distributed
Applications	voltage
Number of inputs/outputs	8-channel 8 analog inputs
Mounting	DIN rail
Size	mini
Other characteristics	configurable compact insulated rugged with optocoupler
