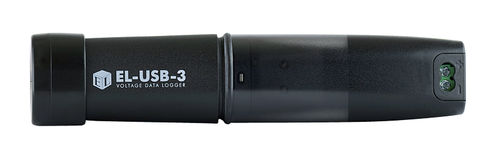

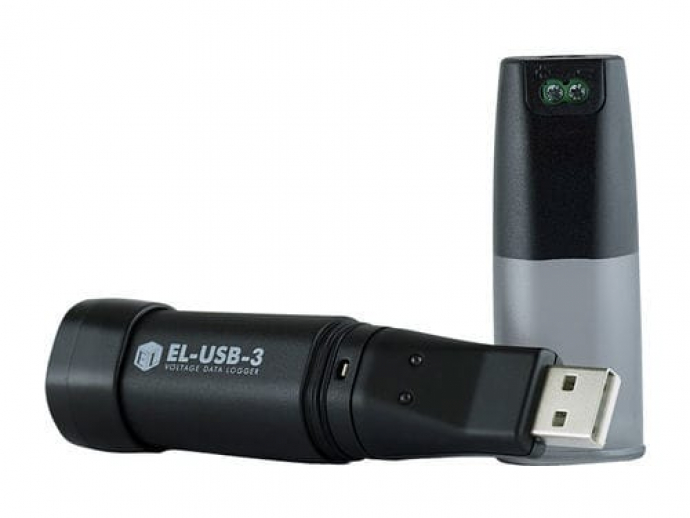

Voltage Data Logger USB
Voltage Data Logger USB Measurement range 0 to 30 V d.c.; Internal resolution 50 mV d.c.; Accuracy (overall error) ±1%; Logging rate User selectable between 1 second & 12 hours; Operating temperature range -35 to +80°C; Battery Life 3 Years; Readings 32,510 Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery, measurement leads and wall mount clip.

Parameter Name	Parameter Value
Measured quantity	voltage
Connector type	USB
Display	without display
Applications	for monitoring for logistics for cold chain monitoring for freezers for refrigerators for harsh environments for automotive applications
Other characteristics	battery-powered with connector IP67
Memory capacity	32,510 unit
