14 Digital I/Os

8 digital inputs (2 kHz) for status, counter, frequency 4 digital outputs (10 Hz) for status, 2 Relay

8 analog multipurpose inputs

for voltage, current, resistance, Pt100, Pt1000

Analog Digital Conversion

rate 100/s each channel, resolution 24 bit

Galvanic isolation

Channel to supply to interface, 500 VDC

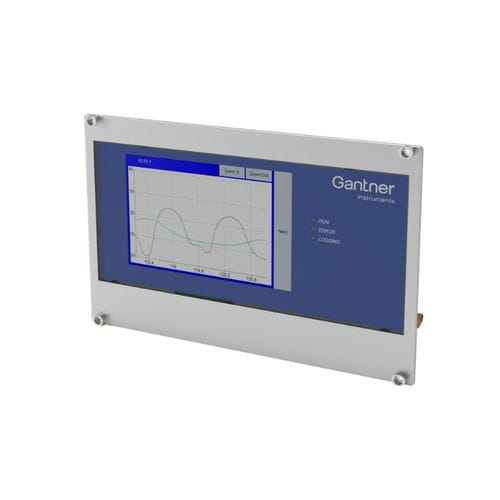

TFT Touch Panal Display, 5" WVGA (800 x 480), auto-off selectable 10 s up to 10 min

Parameter Name	Parameter Value
Measured quantity	voltage, current, frequency, resistance
Sensor type	Pt100
Other characteristics	digital
