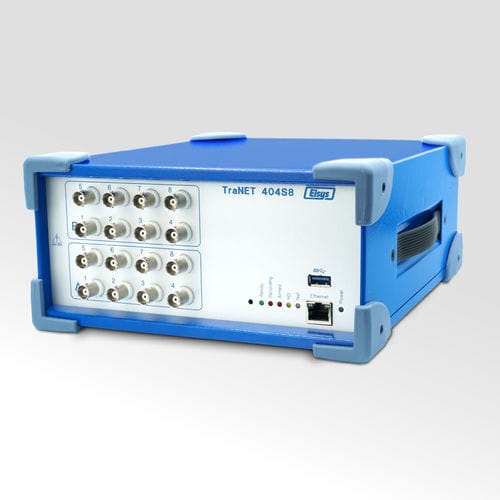

Voltage data acquisition unit TraNET FE 404

Voltage data acquisition unit TraNET FE 404

Voltage data acquisition unit TraNET FE 404

About


TraNET FE - LAN Data Acquisition Instrument with GBit Ethernet connection. It comprises of 4, 8, 12 or 16 channels single ended analog inputs with great accuracy of 0.03% of the full scale range (FSR). The maximum sampling rate can be choosen between 2 and 240 MS/s per channel. Vertical resolution is 14 or 16 bit, depending on the sampling rate. Each channel has up to 128 MS on-board memory. For long time measurements the data can be streamed directly to the included hard-disk.

The device can operate in stand-alone, allowing easy long time monitoring in different kind of application like structural health monitoring or disturbance detection in power application.

TraNET FE can be used in LabView thanks to the available LabView Instrument driver. User searching for a turn-key measurement solution the Data Acquisition Software TranAX from Elsys provides the needed functionality for sophisticated measurement setups, analysis functionality and reporting features.



PARAMETERS

Parameter Name Parameter Value
Measured physical value
voltage, power, ultrasound
Number of channels
  • multi-channel
  • 16-channel
Mounting
benchtop
Options and accessories
  • programmable
  • analog input
  • modular
  • Ethernet
  • high-speed
  • multi-function
