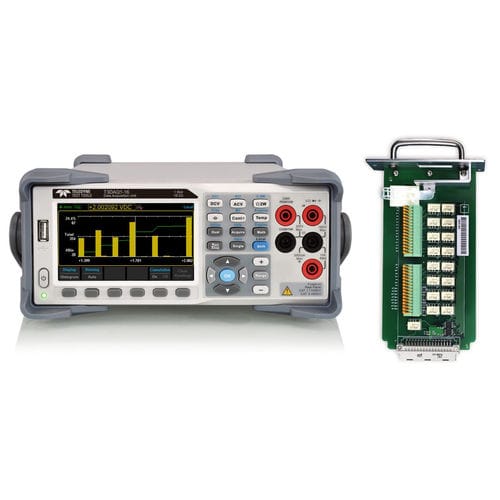

The Teledyne Test Tools T3DAQ1-16 is a 16 channel Data Acquisition System incorporating the latest 4.3 inch (10.92 cm) dual-display technology which can be configured to show Data Histograms, Data fluctuation Trends, Bar Graph, Statistics or the traditional Number mode, all in an easy-to-use interface. The T3DAQ features 12 multi-purpose + 4 current channels and supports various measurement functions. It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

Key Features
• 16 Multi-purpose Data Acquisition Channels built on a 6½ digit digital Multimeter platform.
• Wide range of measurements – DC/AC voltage and Current, Resistance, Capacitance, Frequency, Period.
• True-RMS measurements – All AC Voltage and Current ranges give True-RMS readings.
• Built-in cold terminal thermocouple compensation.
• USB Device, USB Host and LAN support.
• 4.3" Large TFT LCD Displays function menus and various other parameters.
• Softkeys Provide More Intuitive and Fast Operation.

Parameter Name	Parameter Value
Measured physical value	voltage, capacitance
Number of channels	16-channel
Mounting	benchtop
Options and accessories	USB digital programmable
