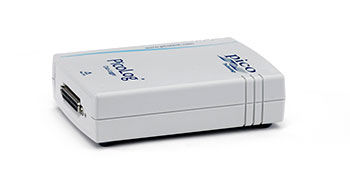

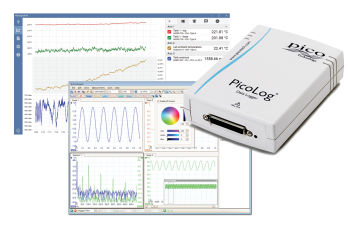

Designed to meet the needs of a wide range of general-purpose voltage, sensor and transducer logging applications, the PicoLog 1000 Multichannel DAQ Series features independent software-configurable scaling and control outputs, an external terminal board for custom front-end circuitry and a choice of 10 or 12-bit input resolution.

Multichannel data acquisition (DAQ)
• Up to 16 input channels per data logger
• Up to 4 output channels per data logger
• Use up to 20 data loggers at the same time
• Up to 1 MS/s sample rate
• USB connected and powered
• Data acquisition software and SDK included

A distinguished pedigree
The PicoLog 1000 Series is the result of a distinguished lineage that goes back to the release of our first multichannel data logger—the ADC-11—in 1993. The original ADC-11, and its successor the USB ADC-11, proved to be the perfect choice for users wanting a low-cost way to measure and record multiple signals. The PicoLog 1000 Series builds on this success to give you the same low-cost data acquisition but with greater power and performance. (Because the ADC-11 was so popular we’ve also added a USB ADC-11 compatibility mode which allows you to use your PicoLog 1000 logger as a direct replacement to the USB ADC-11.)

An expandable multichannel data acquisition system
The budget model PicoLog 1012 has 12 input channels and 10 bit resolution. The powerful PicoLog 1216 has 16 channels and 12 bit resolution. Need more channels? No problem.

Parameter Name	Parameter Value
Measured physical value	voltage
Mounting	benchtop
Options and accessories	USB
