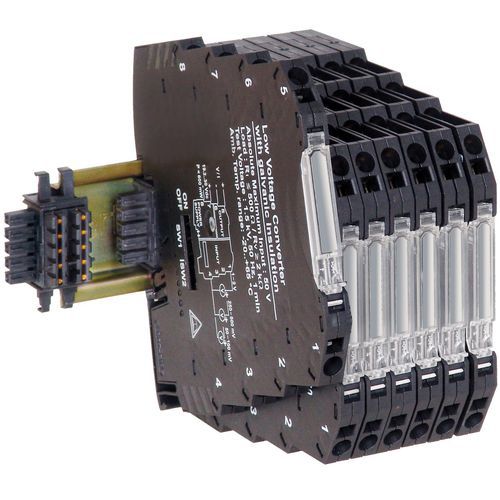

Each DSCP62 Thermocouple Converter provides a single channel of thermocouple input which is amplified, linearized and converted to a high-level current or voltage output. Thermocouple type, measurement range, filter, output type and range, and fault indication may be configured by dip-switch. An auxiliary relay output is provided to generate an alarm or act as a thermostat.
Thermocouple Input : Type J, K, E, N, S, R, B, T (ITS-90 Standard)
Current Output: 4 to 20mA, 20 to 4mA, 0 to 20mA, 20 to 0mA
Voltage Output : 0 to 10V, 10 to 0V, 0 to 5V, 1 to 5V
Static Relay Auxiliary Output : Nominal Voltage 24V AC/DC, Current 60mA, Overvoltage Protection 50V, Settable Alarm Trip/Hysteresis
Isolation : 1.5kV (50 or 60Hz, 1 min)
Power Supply : 19.2 to 30V DC
Better than ±0.1% Accuracy
14-Bit Resolution
Output Overcurrent Protection
500mW Maximum Power Consumption
Dip-Switch Configuration
Cage Clamp Connectors
Hot Swappable
Expandable Power-Bus Connector on DIN Rail Guide
Compact 93.1 x 6.2 x 102.5mm PBT Black Case
Wide Operating Temperature Range : -20°C to 65°C
CE Compliant
RoHS Directive 2002/95/EC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
voltage/current
|
| Other characteristics |
|
