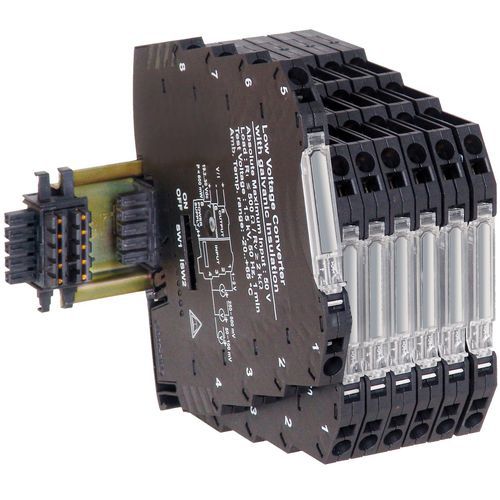

Each DSCP61 RTD Pt100 Converter provides a single channel of RTD input which is amplified, linearized and converted to a high-level current or voltage output. Inputs may be connected by 2, 3, or 4 wires and measurement range may be configured by dip-switch to cover a range of –150°C to +650°C
Pt100 RTD Input : 2-, 3- or 4-wire (32V max)
Current Output : 4 to 20mA or 20 to 4mA, 0 to 20mA, 20 to 0mA
Voltage Output : 0 to 10V, 10 to 0V, 0 to 5V, 1 to 5V
Power Supply : 19.2 to 30V DC
Isolation : 1.5kV (50 or 60Hz, 1 min)
Better than ±0.1% Accuracy
14-Bit Resolution
Output Overcurrent Protection
500mW Maximum Power Consumption
Dip-Switch Configuration
Cage Clamp Connectors
Hot Swappable
Expandable Power-Bus Connector on DIN Rail Guide
Compact 93.1 x 6.2 x 102.5mm PBT Black Case
Wide Operating Temperature Range : -20°C to 65°C
CE Compliant
RoHS Directive 2002/95/EC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
voltage/current
|
