Visual inspection machine LU series

Visual inspection machine LU series

Visual inspection machine LU series

About


A Bijlsma Hercules inspection unit is a perfect addition to the product cleaner, because you not only free the product from stones and clods, but you can also select on quality. The inspection unit is delivered as a separate, mobile unit as standard and is positioned directly behind the product cleaner. This makes the product easy to inspect. In addition, it is also possible to opt for a combi version, in which the receiving hopper, product cleaner and inspection unit are mounted on one undercarriage.

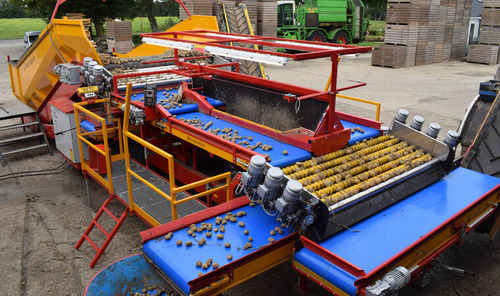

The system in operation
In the separate version, the crop conveyor of the product cleaner is used as a cross conveyor at the end of the inspection unit. The inspection unit itself consists of a dividing conveyor, which distributes the product between the two inspection conveyors. By default, the selected waste is transported backwards to the soil conveyor of the product cleaner, by a conveyor which is positioned between the inspection conveyors.

STANDARD EQUIPPED WITH

• Dividing conveyor on special belt support, to prevent jamming of stones underneath the distributor.
• Inspection conveyors with a width of 700 mm, for ample selection possibilities.
• Waste conveyor centrally below the inspection unit, with discharge to the soil conveyor of the product cleaner. Optionally available with rear discharge.
• Frequency drive on the conveyors.
• BLC Line Module System.

OPTIONS
• Additional, separate conveyor for a standalone version.
• Fluorescent lighting above the inspection conveyors.



PARAMETERS

Parameter Name Parameter Value
Technology
visual
Sector
for the food industry
Other characteristics
belt conveyor
