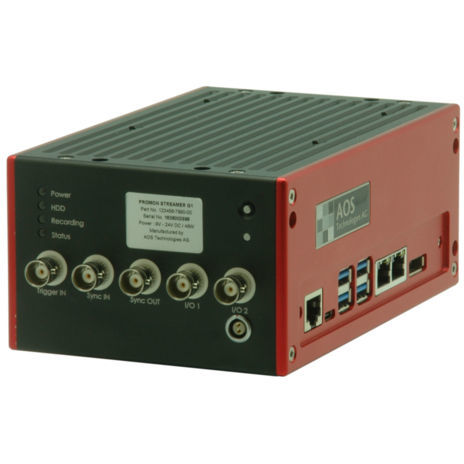

The PROMON STREAMER is a compact all-in-one long time high speed streaming system.

The compact footprint makes the Streamer a perfect system for permanent installation on a production line. Beside the high speed recording feature and the long time recording capabilities, the built-in I/Os allow control from PLC - so it’s ready when you need it. The versatile system is available in different variations such as built-in camera, with an additional external camera, or two external cameras. The control software is based on Imaging Studio v4, all features are easy configurable by the software.

Key Features
• Ideal for permanently installation
• Small footprint
• Long-Recording Highspeed Camera System
• AOS Imaging Studio v4 based control software
• Mono or Color Camera
• User configurable digital IO's for PLC communication with the Streamer
• Cost effective

Highlights
• Up to 100 minutes recording capacity in high speed
• 151 fps at 1920 x 1200 pixels
• 305 fps at 1024 x 1024 pixels
• 817 fps at 640 x 480 pixels
• max. frame rate of 4'000 fps
• User replaceable storage drive
• I/O Controllable with I/O mapping tool
• Motion Detection for Event Marking or trigger
• High capacity hard disk (Up to 2 TB Storage)
• Mono or Color Camera
• Lenses, LED illumination, mounting solutions
• Motion analysis software with automatic tracking features

PROMON STREAMER G2 combines the features of a high-speed camera with a long record time stand-alone system.
The small powerful fan-less controller with an external camera allows the system to be installed in locations where conventional systems are too large. The PROMON STREAMER G2 controller stores up to 25min of high-speed video data.

Parameter Name	Parameter Value
Type	video
Measured physical value	vision processing, motion
Applications	industrial for automobiles
Number of channels	5-channel
Other characteristics	USB Ethernet high-speed with integrated data logger
