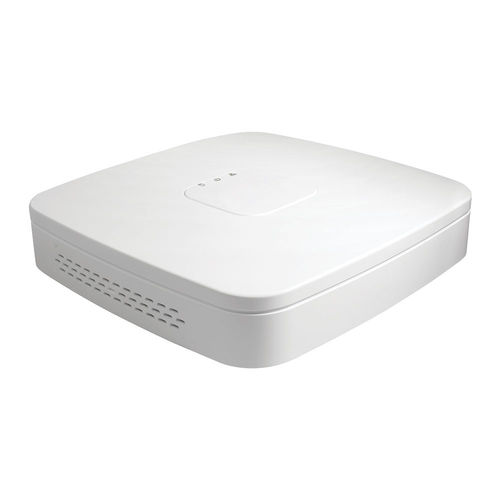

4/8 Channel Smart 1U 4PoE 4K&H.265 Lite Network Video Recorder NVR4104/4108-P-4KS2
> Smart H.265+/H.265/Smart H.264+/H.264
> Max 80Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> Up to 2ch@4K/8ch@1080P decoding
> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports

Main Processor
Quad-core embedded processor

Operating System
Embedded LINUX

Aduio and Video

IP Camera Input
4/8 Channel

Two-way Talk
1 Channel Input, 1 Channel Output, RCA

Display

Interface
1 HDMI, 1 VGA

Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity
2ch@4K(30fps)/8ch@1080P(30fps)

Multi-screen Display
4CH: 1/4
8CH: 1/4/8/9

OSD
Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression
Smart H.265+/H.265/Smart H.264+/H.264

Resolution
8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate
80Mbps

Bit Rate
16Kbps ~ 20Mbps Per Channel

Record Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval
1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec

Parameter Name	Parameter Value
Type	video
Measured physical value	vision processing
Applications	network
Number of channels	4-channel 8-channel
Other characteristics	NVR USB portable
