About
The NVR-Q67S adopts Intel® Core™ i3/i5/i7 Processor and equips the Intel® Q67 chipset. Moreover, the system memory features 4GB or 8GB DDR3 1333/1600 MHz Non-ECC, Un-buffered DIMM Memory up to 32GB. It deploys two 10/100/1000Base-TX Ethernet RJ-45 ports. The NVR-Q67S features desktop and rackmount form factor for network appliance applications.

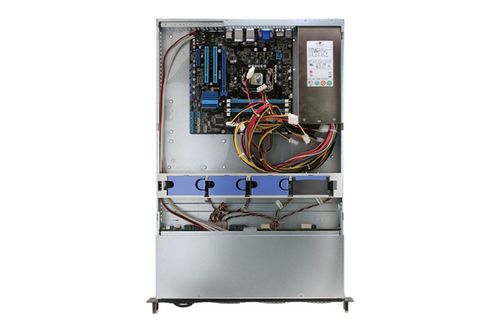

This NVR-Q67S supports up to eight Hot-Swappable 3.5" HDD tray and one 2.5" internal System HDD bracket with a 500W PSU. Moreover, the flexible expansion interfaces feature one PCI-E(x16), one PCI-E(x4), and two PCI slots. In addition, this model supports two COM ports, and four USB2.0 ports at the rear. Furthermore, the NVR-Q67S supports one VGA, one DVI-D, and one DisplayPort™.
Applications
Networking Video Recorder
Surveillance Management
Features
Socket 1155 with 2nd Generation Intel® Core™ i3/i5/i7 Processor
Intel® Q67 Chipset
4 GB or 8 GB DDR3 1333/1600 MHz, Non-ECC, Un-buffered DIMM Memory, Up to 32 GB
10/100/1000Base-TX x 2
PCI-E to SATA 2-port Conversion Card
3.5” SATA HDD Hot Swappable Tray x 8 + 2.5” Internal HDD Bracket x 1
Onboard COM x 2
USB2.0 x 2 (Front), USB2.0 x 4 (Rear)
VGA x 1, DVI-D x 1, DisplayPort x 1
Supports RAID 0/1/5/10
Audio Line-out, Line-in, Mic-in
Windows® 7 Embedded Standard (Optional)
500W PSU
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
video
|
| Applications |
network
|
| Other characteristics |
|
