The EB34TD1R-SM is an electrical emSFP receiver module designed to convert HDMI to an SDI signal output without scaling artifacts. Up to 2 channels of PCM audio are supported.

The video sfp EB34TD1R-SM is an HDMI1.4 and DVI1.0 to SDI video sfp (emSFP) converter. This video SFP is designed to convert HDMI 1.4 or DVI 1.0 input to an legal smpte SDI (3G, HD,SD-SDI) signal without scaling artifacts.

This HDMI/DVI video SFP contains frame buffer to suppress the accumulated low and high frequency jitter (Timing and alignment). Up to 2 channels of HDMI embedded 8 audio PCM channels are re- embedded in the SDI stream.

These modules convert from HDMI v1.4/ DVI 1.0 to SDI or from SDI to HDMI v1.4. Converter is built-in inside the Video SFP and standalone.

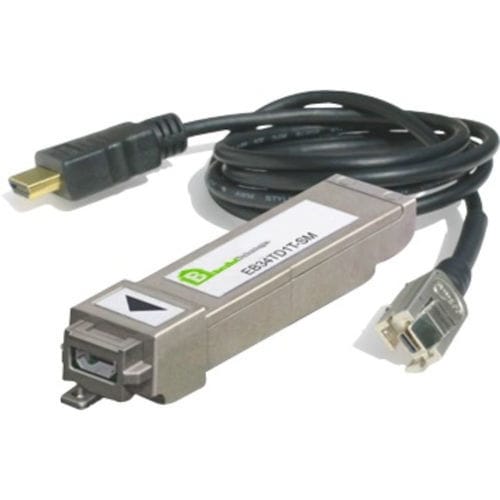

The SFP features a HDMI type D connector with a retention clip that locks with cables EB00CC04-02C (DVI) and EB00CC04-02C (HDMI).

SMPTE 292M, and SMPTE 259M
SDI Reclocked output to host connector
Supported format: 525/625, 720p/1080i (50/ 59.94/60 Hz), 1080p (23.98/24/25/29.97/30 Hz)
HDMI Input:
24bit (3x8bit)
RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4
BW=80MHz
DVI 1.0 Mode (Only video resolution)
RGB Range (Full/SMPTE)
Up to 8 channel audio embedding (PCM)
HDMI 1.4 type D connector
HDMI type D plug with retention mechanism available (EB00C04 series)
Hot-pluggable
Control via serial interface including:
EDID reading
HDMI interface configuration
Audio mapping
Voltage & Temperature Monitoring
Module Information
Low Power Consumption – typical TBD

Parameter Name	Parameter Value
Type	video
Applications	audio
Interface type	serial
