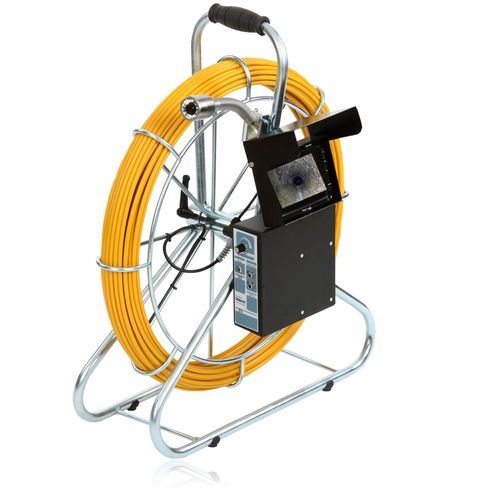

The camera inspection system Kati® KIS offer the best technical specification for the inspection of pipes and hollow spaces:

• high quality glassfibre profile from KATIMEX® with integrated copper wires
• stable reel with integrated 6 pole slip ring transmitter

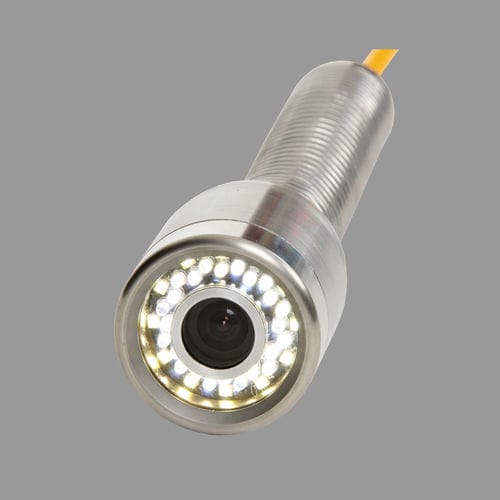

• powerful light and high-resolution camera system

The new pipe cameras are used in damaged pipe and sewer systems, for quality tests and inspection of cavities.
Particularly in the house service area the camera system shows its advantages. You can push the head of the camera easily up to 60 meters with the shear-stable Polykat® fiberglass profile. At the same time, the rod is flexible to bend around tube curves with small diameters.

All camera inspection systems are equipped with:
• LCD-monitor 5,6“ in an aluminum box incl. light protection shield
• high-resolution Sony CCD 1/4“ chip, 480 TV-lines, resolution 752 x 582 pixels with automatically white balance
• electrical power supply with 230 V 50 Hz or 12 V car-battery Ø galvanized steel capstan with integrated brake and a 6-pole slip ring transmitter

Parameter Name	Parameter Value
Type	video
