Vibration and shock recorder
Battery-powered portable vibration and shock recorder. The device has an embedded 3-axial accelerometer and a high-accuracy temperature sensor. The acquired data is stored in the non-volatile internal memory with a real-time stamp for subsequent analysis.
The device has a sturdy aluminum casing and is rated IP65 water & dust resistant. It has a wide measurement range for both acceleration and temperature and provides accurate data with a low error rate.
The acceleration sensor has adjustable sensitivity and sample rate for different applications. The temperature sensor has a flexible sampling period from 1 minute to 1 hour.
The data logger operates in two modes:
• continuous recording
• shock-event recording
Continuous recording mode stores all acceleration data. In shock-event mode, only the acceleration values exceeding the user-defined trigger level are recorded. Acceleration trigger levels can be specified for individual axes. Each shock event includes a user-defined time interval before and after the shock.
The device delivers up to 1 month of uninterrupted work, depending on the mode, sample rate, and battery type.

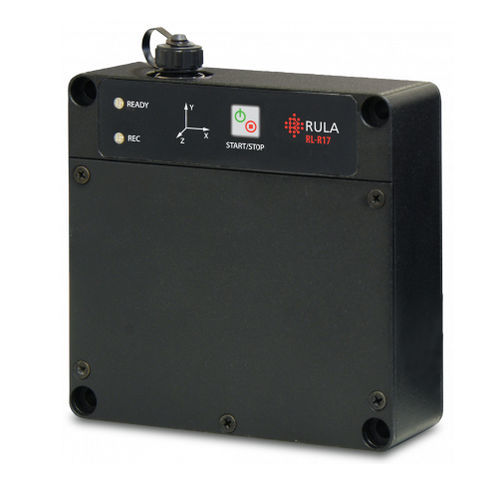

RL-R17 is easy to use with one control button and LED lights on the front panel indicating its status and recording mode.
The shock recorder connects to PC through a standard IP65-protected USB2.0 socket. While connected, it can perform recording online and display data on graphs in real-time.
RL-R17 works with VisShock software. The software complex allows the user to configure the device, manage the recordings and process the data.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
event
|
| Measured physical value |
vibration, shock
|
| Applications |
data logger
|
| Number of channels |
multi-channel
|
| Other characteristics |
|
