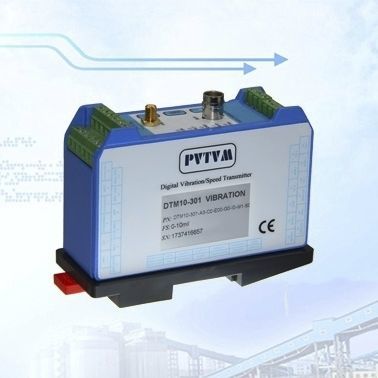

The DTM10 distributed vibration transmitter-monitor is ideal for monitoring machine vibration using proximity probes and a Modbus interface to a PLC or DCS system. The DTM also contains redundant power supplies and redundant 4-20mA transmissions. Using PVTVM’s unique strategy, the DTM can interface with almost any proximity probe system without hardware changes.

Electrical

Power Supply:

22-30VDC, 150mA.

Galvanic isolation

Frequency Response (-3dB):

Nominal frequency: 4 ~ 3.0KHz

Low frequency: 0.5 ~ 100Hz

Proximity probe Interface:

Sensitivity:

5mm and 8mm probe: 8 mV/um (200 mv/mil)

11mm probe: 4 mv/um (100 mv/mil)

25mm probe: 2mv/um (50 mv/mil)

Buffered Output:

Original, un-filtered signal

Impedance: 150Ω

Maximum cable distance: 300m (1000ft)

Sensitivity: same as the sensor

Local BNC connection and terminal block

S0 and S1 options: Source, Non isolated

S2 and S3 options:

Passive, Galvanic isolation, 1000VDC

Power supply range: 22-30VDC

4-20mA Output:

Dual 4-20mA, sourced (loop power not required)

Maximum load resistance: 380Ω

Alarm Setup:

0 ~ 100% FS.

Accuracy: ±0.1%.

Delay: 1~60s, according to 1 second increase, default is 3s. Speed monitor without delay.

Relays:

Seal: Epoxy

Capacity: 0.2A/240VAC, 0.4A/110VAC or

2.0A/24VDC, resistive load

Relay type: SPTD

Isolation: 1000VDC

LED Machine Condition Indicator:

OK: System OK indication

ALT: Vibration over ALERT level

DNG: Vibration over DANGER level

BYP: System in BYPASS

Parameter Name	Parameter Value
Type	condition power speed vibration
Applications	process
Configuration	portable
Interface	Modbus
Other characteristics	proximity
