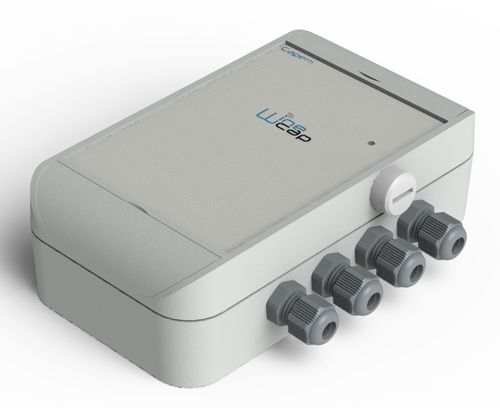

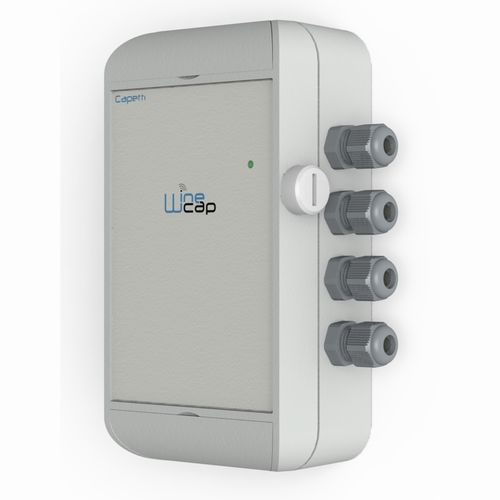

4-channel Wireless Smart Datalogger - Up to 4 vibrating wires and up to 2 temperatures - Configurable inputs (2+2, 3+1, 4+0) - Type "C" lithium internal battery for a battery life up to 4 years with 4 vibrating wires and samples every 60 minutes
TECHNICAL DATA
Power supply - 8.5A/h - 3.6V type “C” lithium internal battery
Battery life (*) - Up to 4 years (samples every 60 minutes, radio signal quality at least sufficient and 4 vibrating wires)
Measures acquired (4 channels) - · Frequency · Temperature
Sampling interval (*) - Selectable from one minute to 24 hours (60 minutes default)
Working temperature - · Operative: -30°C ÷ +60°C · Warehousing: -40°C ÷ +70°C
Radio frequency - ISM 868MHz
Radio coverage (**) - From 800m up to 12.8Km on sight
Dimensions - 90 x 160 x 50mm
Weight - 450g
Case material - ABS
Mounting - Fix on 4 points
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Measured quantity |
temperature
|
| Connector type |
wireless
|
| Display |
without display
|
| Applications |
for vibrating wire sensors
|
| Other characteristics |
|
| Memory capacity |
64,000 unit
|
