About

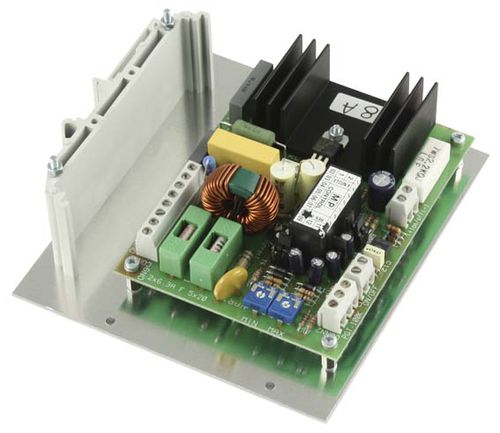

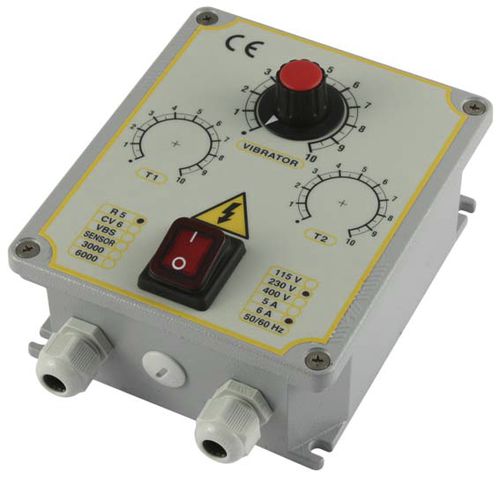

R5FC is a compact and easy-to-use phase angle controller. The maximum current is 5 A. it is possible to add NPN/PNP sensor and customizable label.
Application: Conveyor and assembly automation in packaging and dosing industry. Small linear and bowl feeders till 5 A
Max Output Current [A] -
6
Input Voltage [V] -
115/230
Vibration Frequency [Hz] -
50/100 or 60/120
Output Voltage [V] -
20-105 or 40-210
Stabilized vs Input Voltage -
Yes
Soft Start [s] -
0.2, 2
ON/OFF -
0-24V, Dry contact
Working Temperature -
-20/55°C (-4/131°F)
Enclosure -
Aluminum, Circuit, DIN35 Circuit, Plastic
Protection Index [IP] -
IP00, IP20, IP55, IP65
Standard Conformity -
CE, EMC, Rohs
Opto-isolation -
No, Yes
Timer Delay -
No, Yes
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Options |
for vibrating feeders
|
