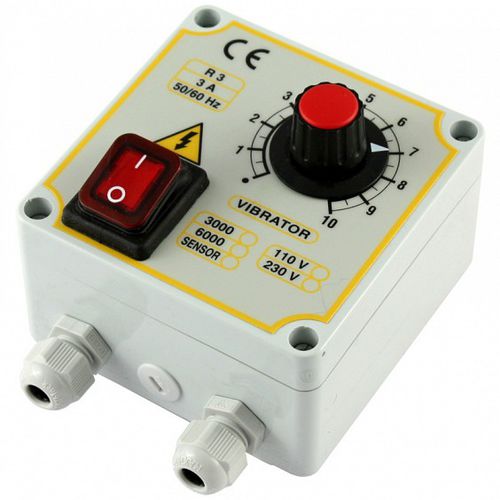

R3FC is a compact and easy-to-use phase angle controller. The maximum current is 3 A. it is possible to add NPN/PNP sensor and customizable label. It also available a version completely optoisolated (R3FC-ISO)

Application: Conveyor and assembly automation in packaging and dosing industry. Small linear vibrating feeder and vibratory bowl feeder

Max Output Current [A] -

3
Input Voltage [V] -

115/230
Vibration Frequency [Hz] -

50/100 or 60/120
Output Voltage [V] -

20-105 or 40-210
Stabilized vs Input Voltage -

Yes
Soft Start [s] -

0.2, 2
ON/OFF -

0-24V, Dry contact
Working Temperature -

-20/55°C (-4/131°F)
Enclosure -

Aluminum, Circuit, DIN35 Circuit, Plastic
Protection Index [IP] -

IP00, IP55, IP65
Standard Conformity -

CE, EMC, Rohs
Opto-isolation -

No, Yes
Timer Delay -

No, Yes

Parameter Name	Parameter Value
Options	for vibrating feeders
