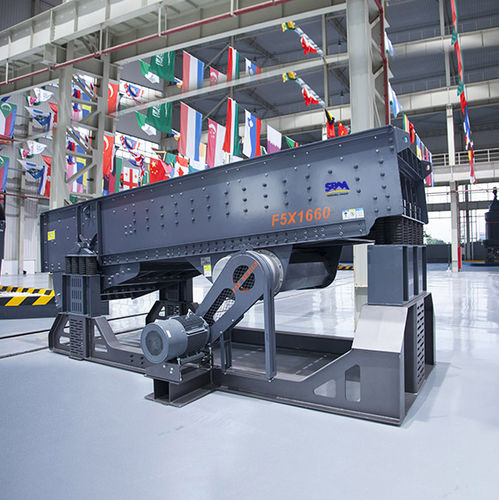

F5X Vibrating Feeder is designed for super-heavy operation condition. It has 4.5G of strong vibration intensity and extremely firm chute body structure. With 1600TPH capacity, 1.5m maximum feeding particle size and 25~45 m³ standard capacity of bin, it is able to bear 80 m³ compartment pressure, which adapts to heavy compartment pressure, high load and heavy impact and other similar poor conditions during the primary feeding operation.

Product Features: Super-heavy design and 4.5G of strong vibration intensity release better performances.
Input Size: 0-1500mm
Capacity: 500-1600TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and so on

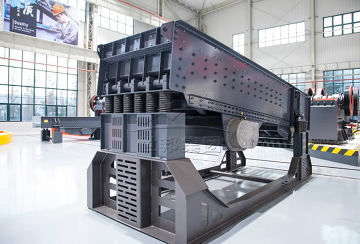

Super-Heavy Chute Body Able to Hold High Pressure and Strong Shocks
Different from the light chute of traditional feeders which use 16# or 20# joist steel and box iron as the longitudinal beam, the super-heavy chute F5X Vibrating Feeder adopts large rectangular tube, able to hold high cabin pressure and strong shocks from falling materials and able to feed materials continuously.

Parameter Name	Parameter Value
Type	vibrating
Operating mode	automatic
Product applications	for limestone
