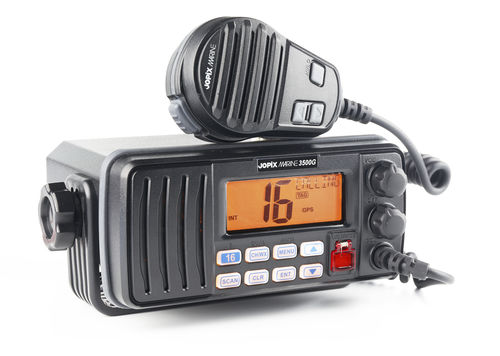

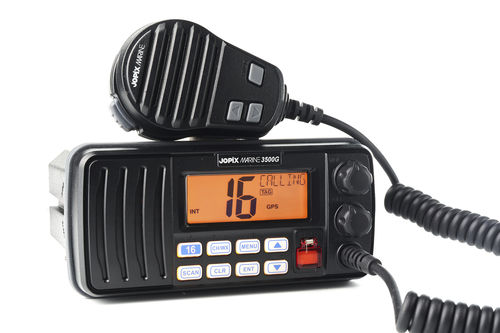

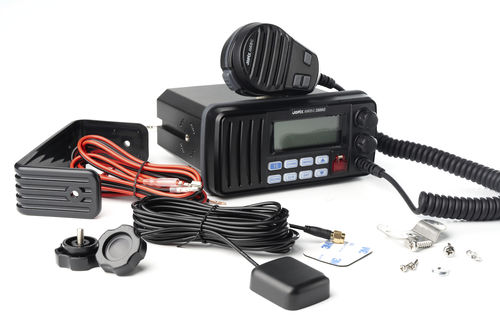

Jopix Marine 3500G is a VHF/FM marine transceiver with DSC and GPS receiver included. It has a compact size and is easy to install with a backlit LCD screen with clear and useful information always in view.

Jopix Marine 3500G is a radio with a DSC (Digital Selective Call) system that allows us to enter the identification of the ship by means of an MMSI code (Maritime Mobile Service Identity), which, together with the data of latitude, longitude and UTC time, provided by the GPS signal, offers us vital information in the event of a distress call.

• Digital selective calling (DSC emergency button)
• FM-Class D mode
• Frequency range: 156.050 MHz. to 163.275 MHz. (Rx)
• Coverage: 156.025 MHz. to 157.425 MHz. (Tx)
• Complies with IP67 standard (1m deep, 30 minutes)
• Dual/triple watch
• External speaker socket
• Tx power: 25W. / 1W
• Emission type: 16K0G3E (FM) 16KOG3E (DSC)
• Power supply: 13.8 VDC
• Dimensions: 161 x 165 x 78mm
• Weight: 926 g (with handheld microphone)
• Connection for external speaker

Parameter Name	Parameter Value
Network	radio VHF FM GPS
Number of channels	multi-channel
Other characteristics	compact
