Vehicle electronic control unit

Vehicle electronic control unit

Vehicle electronic control unit

About

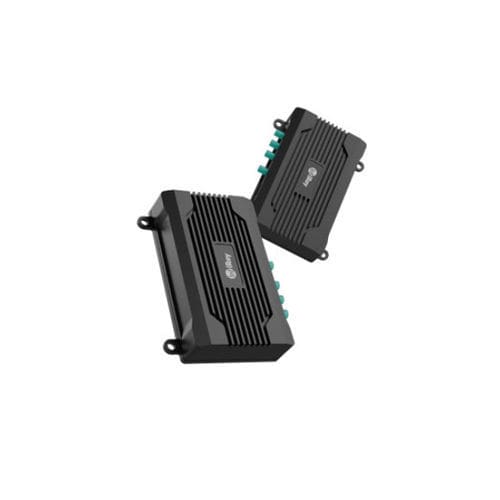

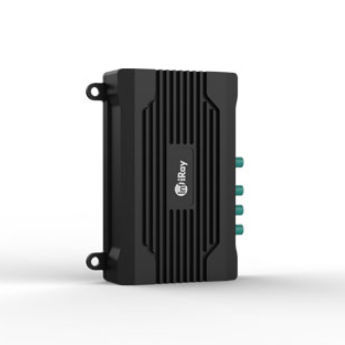

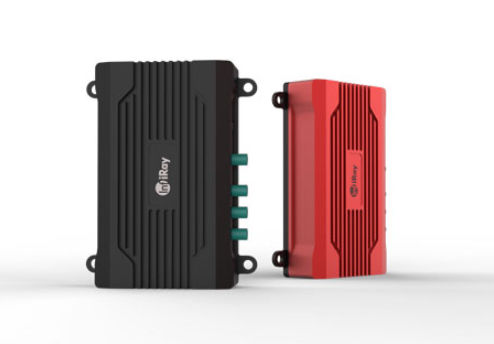

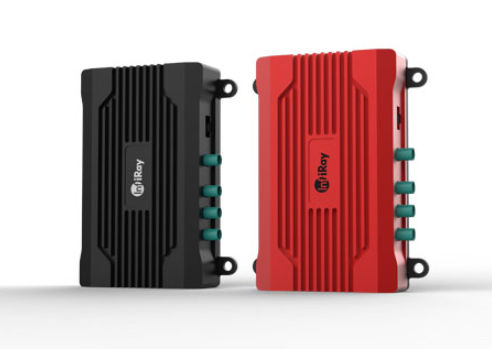

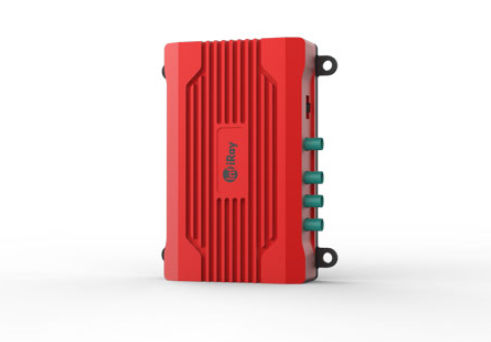

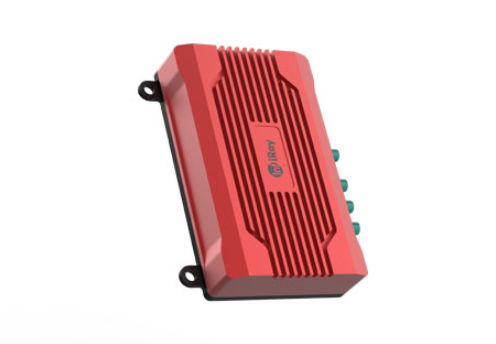

IR.Box is a smart thermal imaging brain with high computing ability. It supports 4-way video data inputs at the same time, with core AI computing ability up to 32T. By integrating the front-end infrared module, the all-inone front and rear intelligent solution is created. It can be embedded in ADAS and auto-piloting systems to enhance the awareness of the environment-aware system.

Features of IR-Pilot IR.Box IATF 16949 Intelligent Vehicle Controller

1. IATF 16949: Meet the environmental requirements for automotive

2. AI: Accurate target detection and recognition (person, vehicle, etc.), feasible driving zone segmentation, lane line detection, target distance perception, infrared true color, and other functions

3. Expandable: Realize multiple solutions with the support of multiple inputs

System Performance

Power Supply

DC 12V(9~16V)

CPU

4-core CortexA53

NPU

UP to 32TOPS

Power Consumption

≤5W

Intelligent Recognition Support

Target detection and classification; lane line recognition; semantic segmentation; depth and distance perception; infrared true color conversion.

Video Interface

Input: 4 × GMSL FAKRA Z Type

Output: AHD/CVBS /LVDS

Communication Interface

CAN

Environmental Parameters

Operating Temperature

-40℃~+85℃

Waterproof Rating

IP54/IP67

Physical Characteristics

Size

W: 90mm, L:145mm, H:32mm

Weight

<500g
