About
Highlights
Advantages of the C.A 1954
•exceptional 9-hour battery life with standard Ni-MH rechargeable batteries or alkaline batteries
connectivity with current clamps and environmental measurement products: all the necessary measurements simultaneously (current, influencing quantities, dew point for identifying areas at risk from mould, etc.)
voice annotations to record your comments directly on the image
the possibility of renaming the images and thermograms by site
recording and storage in memory of the configurations for each application
Description

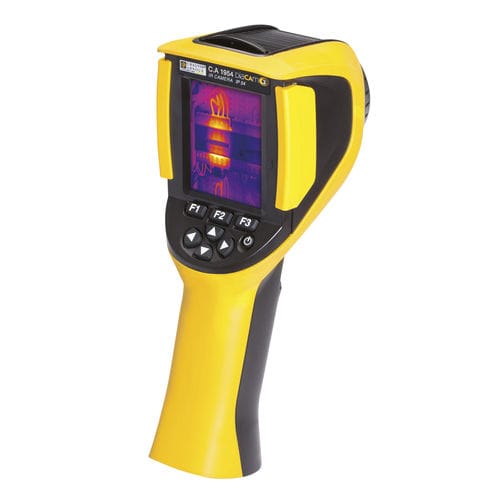

Designed and developed for simplified use, the C.A 1954 is ideal for all applications in the building, electrical maintenance and mechanical maintenance for:

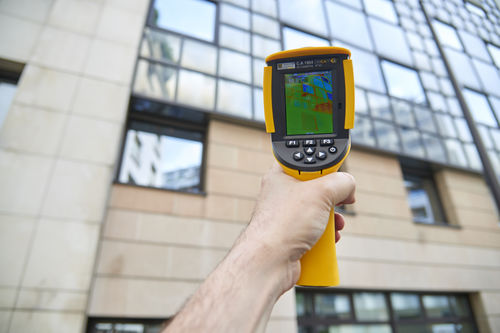

•thermal audits
fault detection: thermal bridges, seepage, presence of humidity

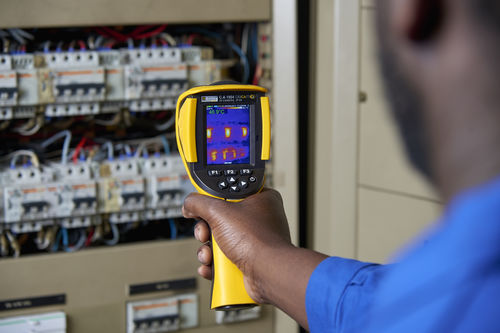

electrical maintenance: detection of faulty contacts, unbalance, etc.
mechanical maintenance: detection of wear points, motor overheating, lubrication problems, etc.
It has been specially designed to be simple to use:
•comfortable grip, with direct access to the functions with just one hand
the C.A 1954 is perfectly balanced and does not move even when stood on a table or bench
display on a wide 2.8-inch screen with automatic brightness adjustment
the field of view (38°x28°) is focus-free, which means that the image remains sharp whatever the distance
contextual help guides users to limit the risk of errors
the C.A 1954 allows you to record voice comments directly on the image
the slide-down protective lens cover is built into the instrument, so you cannot lose it and it does not get in the way.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for vehicles
|
| Technology |
digital
|
| Function |
|
| Spectrum |
infrared, full-color, multi-spectral
|
| Sensor |
microbolometer
|
| Interface |
USB
|
| Resolution level |
HD
|
| Other characteristics |
|
