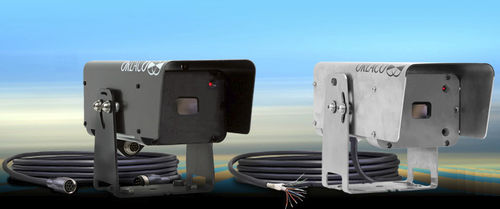

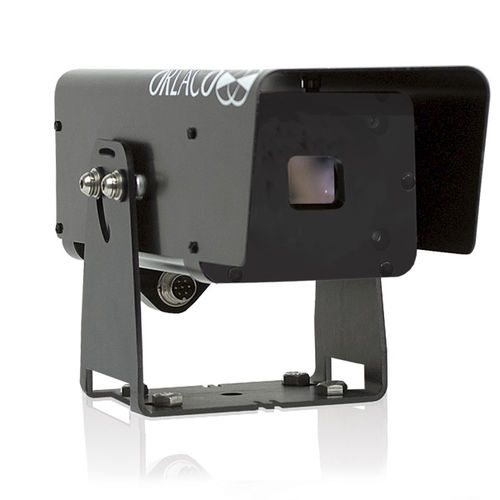

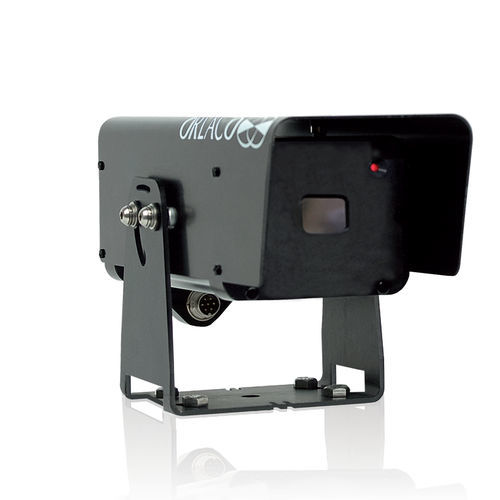

The Orlaco Thermal Imaging Camera (TIC) aluminium RS232 is a sturdy night vision camera. This camera can be used in serial vision solutions on vehicles and vessels. The camera is shock and vibration-proof, filled with nitrogen, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions. The camera has Uncooled LWIR Thermal Imager 336x256 VOx microbolometer technology and a 9Hz frame rate.
Wide Field Of View (WFOV) 24º x18º thermal Imaging camera suitable for Orlaco Standard RS232 (Pelco-D/Visca) communication. You can communicate with this camera from a serial Orlaco monitor. You will need a serial Orlaco monitor to do so. Other than connecting it directly to a serial Orlaco monitor, there are many other options for controlling and connecting it to third-party systems.

Input voltage
12...30V/DC
Connector
Orlaco 7-pins male
Cable
Including Multi cable 7pF>7pM 6m
Vibration resistance
50G
Protection class
Watertight IP68, IP69K
Operating temperature
-40ºC to +85ºC
Dimensions
260 x 140 x 122mm (without bracket)
Weight
2,6kg

Parameter Name	Parameter Value
Applications	for vehicles
Technology	analog
Function	thermal imaging for night vision
Spectrum	LWIR
Sensor	microbolometer
Other characteristics	waterproof wide field rugged shock-proof uncooled
