Commander variable speed drives have established the standard of excellence in motor control since 1983 when Control Techniques launched the first world commercial vector drive. Since then, Commander has undergone several successful reiterations, each time bringing new technology and innovations to the world of automation.

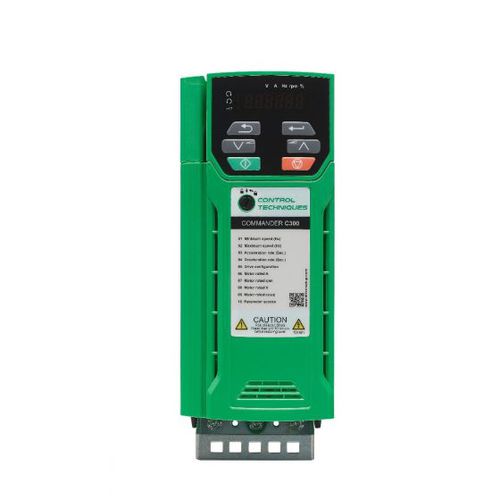

The new Commander C series has been designed to be a simple and compact AC motor speed controller that meets advanced requirements in a wide range of applications and provides optimum user experience.

Commander C Highlights
✓ Set just 4 parameters to get your drive started
✓ Plug-in options for advanced control
✓ Dual Safe Torque Off (STO)
✓ Equipped with the latest energy saving features
✓ Up to 180% overload for high torque applications
✓ On board PLC
✓ Straightforward installation and commissioning
✓ Easy motor pairing and performance control
✓ Robust and reliable design

Simple set up. 3 steps to control
Setting up a drive can require training, specialist knowledge and time.

Not with Commander C: it will get you up and running, from out of the box to controlling your motor, in minutes.

Three simple steps will set up your drive for most fan, pump, compressor, conveyor and general purpose applications!

Specifications
Control Mode
Open loop vector or V / Hz induction motor control ✓
Open loop Rotor Flux Control for induction motors (RFC-A) ✓
Environment
Ambient Operating TemperatureSize 1 - 4: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 60°C (140°F) with de-rating
Size 5 - 9: -20°C to 40°C (-4°F to 104°F) @ 3 kHz switching freq. | Operation to 55°C (131°F) with de-rating
Cooling MethodForced convection

Parameter Name	Parameter Value
Type	three-phase single-phase
Mounting	standard
Applications	pump for induction motors for conveyors for compressors fan
Protection class	IP20 NEMA 1
Other characteristics	compact open-loop variable-speed motor
Power (W)	250 - 250
Output frequency	Max.: 66 HzMin.: 45 Hz
