About

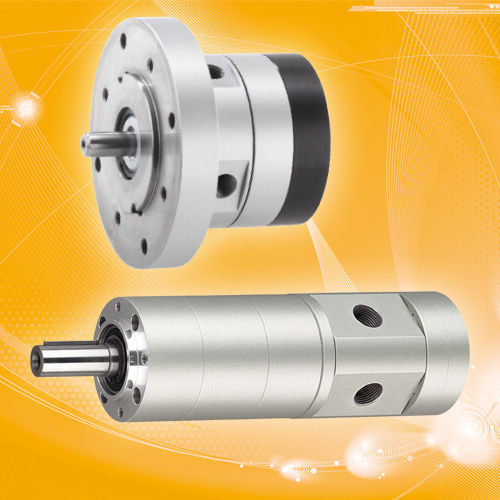

This modern and compact BASIC LINE airmotor offers an especially attractive price-to-performance ratio due to his modular design and further advantages such as; high power density, small size, robustness, ATEX-certification for the use in explosion-proof areas.
When used in a dry environment and under standard stationary production operation, then the pneumatic motor made from cast-iron material is the best choice.
This airmotor series is available in 3 power classes:
200 W – 400 W – 600 W – 900 W – 1,2 kW
The pneumatic motor remains where it is installed. This feature is a enormous time saver.
Low Maintenance:
After loosening the cap-screws and removing the rollers, the vanes may be removed using a tweezers. Afterwards the new vanes may be installed in reverse order.
All air motors can be operated oil-free, without special measures.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology. |
vane
|
| Other characteristics |
compact
|
| Torque (Nm) |
0.38 - 3.3
|
| Rotational speed (rpm) |
16 - 10500
|
| Power (W) |
200 - 200
|
