Activation via separate valve, no valve fitted. Max. axial load of motor shaft FAX = 250 N Max. radial load of motor shaft FRA = 10 N

Stalling torque 2.1 Nm
No-load speed 2,200 rpm
Direction of rotation, R = right, L = left R
Power output 120 W
Air consumption under load 4,5/9,5 l/s / cfm
Weight as per EPTA 0.4 kg

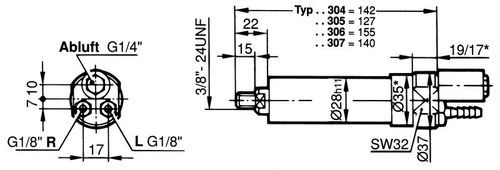

Spindle dimensions 3/8"-24 UNF-2A
Connecting thread G 1/8"
Hose inner diameter 6 mm
Operating curve prod6486pta6247p1 0607954304.pdf (65.31 kb)

Parameter Name	Parameter Value
Technology.	vane
Torque (Nm)	2.1 - 2.1
Rotational speed (rpm)	2200 - 2200
Power (W)	120 - 120
