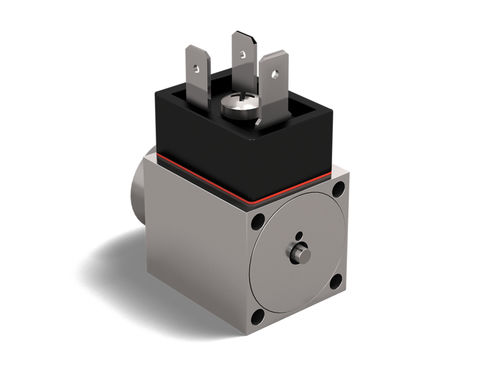

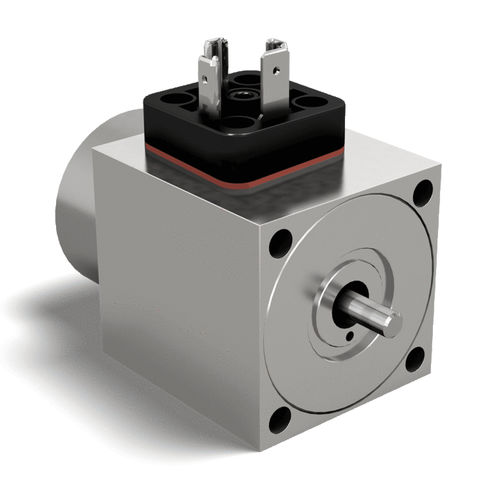

Proportional solenoid for hydraulic valves – Size 45

Square electromagnet in proven sturdy, long-lasting design. Enclosed by solid square housing, which is affixed to the valve with four screws, this pressure-resistant armature tube withstands operating pressure of 320 bar.

The armature’s bearings are of high quality with low friction, and in the event of a fault it can be operated via the integrated manual override.

• Electrical design: Construction type and inspection in accordance with VDE 0580
• Electrical connection: DIN EN 175301-803
• Protection class in accordance with DIN VDE 0470, EN 60529

Parameter Name	Parameter Value
Type	for solenoid valves
Other characteristics	electromagnetic IP65 DC
Voltage (V)	12 - 24
Stroke (mm)	1 - 8
